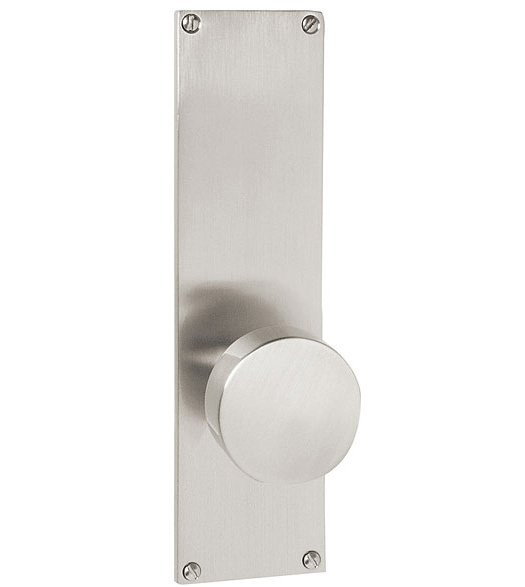

The Modern 9 Inch Sideplate is available in dummy, passage, and privacy functions. This modern interior trim set features a large, 9 inch tall plate to showcase your favorite Emtek knob or lever. The Modern Door Sideplate Set is available in a huge array of finish color options. Choose your favorite and make a statement in your home. This Modern Sideplate will fit standard 2-1/8 inch door preparations with door thicknesses ranging from 1-1/4 inches to 3 inches thick and with backsets of 2-3/8 inches or 2-3/4 inches.

Features of the 9 Inch Modern Door Sideplate:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Surface mounted (rosette screws to the door's face).
• Solid brass trim and sideplate.
• Sold as complete set. Choose your desired knob or lever.
• Easy to install.

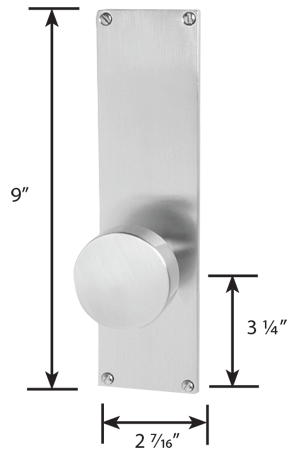

Specifications for the Emtek Modern 9 Inch Sideplate:

• Material: Brass
• Overall Height: 9"
• Overall Width: 2-7/16"
• Plate Thickness: 3/8"
• Doors Thickness: 1-1/4" - 3"
• Backset: 2-3/8" or 2-3/4"

Available Functions

• Double Dummy: No door latch. Door knobs / levers on both sides of the door. Package Includes: 2 knobs / levers, 2 sideplates, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 knobs / levers, 2 sideplates, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior sideplate. Turning inside knob / lever will release privacy push button and retract the door latch. Package Includes: 2 knobs / levers, 2 sideplates, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Select Function - Important Ordering Guide 8013: Double Dummy 8113: Passage (Hall or Closet) 8213: Privacy (Bedroom or Bathroom)   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US4: Satin Brass US3NL: Unlacquered Brass Add  $32.00   Select Door Thickness  1-1/4" - 1-15/16" Door Thickness 2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Handing - Important Ordering Guide Right Handing Left Handing   Select Trim    ATN: Athena Lever   BA: Basel Lever   GV: Geneva Lever   HER: Hermes Lever   HLO: Helios Lever   LU: Luzern Lever   TAKN: T-Bar Knurled Lever   TATR: T-Bar Tribeca Lever   TAHA: T-Bar Hammered Lever   FRL: Freestone Lever   MYL: Myles Lever   OCT: Octagon Knob   BN: Bern Knob   ROU: Round Knob   SQU: Square Knob   FRK: Freestone Knob   HT: Hampton Clear Crystal Knob   MSC: Modern Square Crystal Knob   MDC: Modern Disc Crystal Knob
