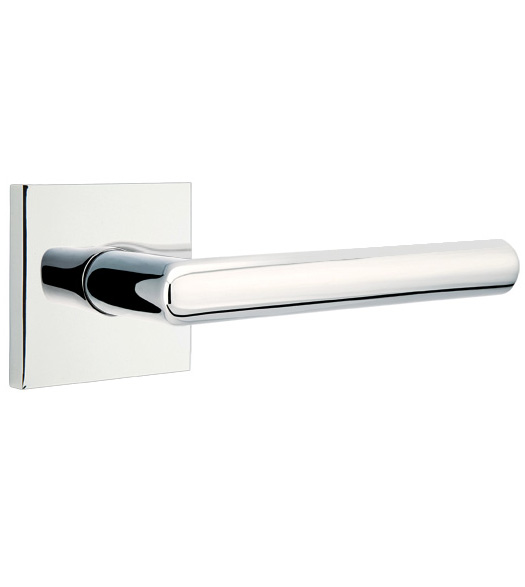

With its sleek style and modern look, the Modern Brass Stuttgart Lever with Square Rose is a great choice for contemporary homes. Choose from several modern finishes including satin nickel, polished chrome, and oil rubbed bronze. The Stuttgart Leverset is available in dummy, passage, and privacy functions. It will fit 1-1/4 inch to 3 inch thick doors and has an optional 2-3/8 inch or 2-3/4 inch backset.

Features of the Stuttgart Door Leverset with Square Rose:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Lever is surface mounted (rosette screws to the door's face).
• Solid brass lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Emtek Stuttgart Lever with Square Rose:

• Material: Brass
• Lever Length: 5-1/2"
• Lever Projection: 2"
• Clearance: 1-1/4"
• Rose Height: 2-1/2" square
• Door Thickness: 1-1/4 - 3"
• Backset: 2-3/8" or 2-3/4"

Available Functions:

• Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Levers are Handed. Handing Guide

Select Function - Important Ordering Guide 5050STU: Double Dummy 5110STU: Passage (Hall or Closet) 5210STU: Privacy (Bedroom or Bathroom)   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US14: Polished Nickel US19: Matte Black US26: Polished Chrome US4: Satin Brass US3NL: Unlacquered Brass Add  $32.00   Select Door Thickness  1-1/4" - 2" Door Thickness 2" - 2-1/2" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing
