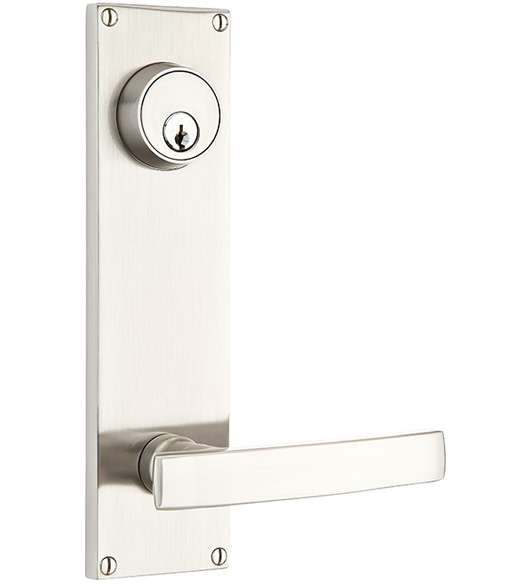

The 9 Inch Modern Entry Door Lockset is a great addition to any contemporary home. The sleek lines paired with the huge selection of on trend knobs and levers makes this front door handleset a stylish way to renovate a tired entry way. The Modern Entry Door Lockset is available in single cylinder, interconnected single cylinder, or dummy functions. This Modern Sideplate Lockset will fit standard 2-1/8 inch door preparations with door thicknesses ranging from 1-1/4 inches to 2-3/4 inches thick and with backsets of 2-3/8 inches or 2-3/4 inches.

Features of the Large Modern Sideplate Lockset:

• Keyway: Schlage C
• Will fit standard 2-1/8" door preparations.
• Solid brass latch with saw-proof insert.

Specifications for the Emtek Modern 9 Inch Entry Set:

• Material: Brass
• Overall Height: 9"
• Bore Hole Spacing (distance between deadbolt and lever latch): 5-1/2" Center to Center
• Overall Width: 2-7/16"
• Plate Thickness: 3/8"
• Doors Thickness: 1-1/4" - 2-3/4"
• Backset: 2-3/8" or 2-3/4"
• Deadbolt: Full 1" Throw
• Emtek 8114 Specifications (PDF)

Available Functions

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a knob/lever operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
• Interconnected Single Cylinder: The deadbolt is thrown and retracted by a key from the exterior and a thumbturn from the interior. The interior knob/lever opens the door without having to unlock the deadbolt for immediate egress.

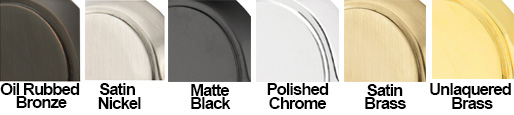

Select Function - Important Ordering Guide 8014: Full Dummy Set 8114: Single Cylinder 8114443: Interconnected Single Cylinder Add  $70.40 8214: Double Cylinder   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US4: Satin Brass US3NL: Unlacquered Brass Add  $32.00   Select Door Thickness  1-1/4" - 1-3/4" Door Thickness 1-3/4" - 2-3/16" Door Thickness 2-1/4" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Trim    ATN: Athena Lever   BA: Basel Lever   GV: Geneva Lever   HEC: Hercules Lever   HER: Hermes Lever   HLO: Helios Lever   LU: Luzern Lever   MC: Mercury Lever   POS: Poseidon Lever   SIO: Sion Lever   STU: Stuttgart Lever   TRT: Triton Lever   BN: Bern Knob   OCT: Octagon Knob   OR: Orb Knob   ROU: Round Knob   SQU: Square Knob   WS: Windsor Crystal Knob   E: Egg Knob   Handing - Important Ordering Guide Right Handing Left Handing   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
