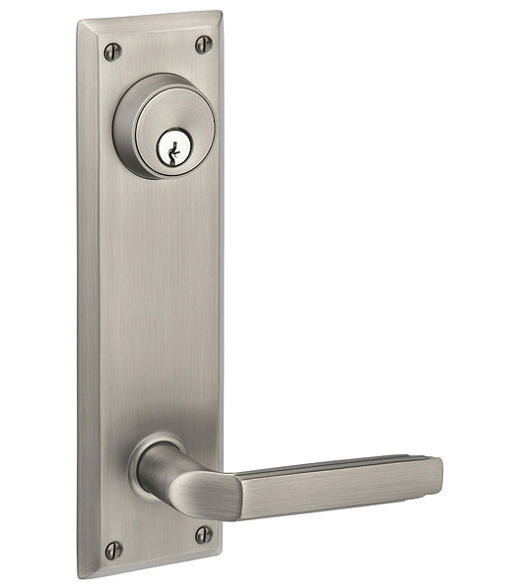

The 9 Inch Quincy Entry Door Lockset is available in single cylinder, interconnected single cylinder, or dummy functions. An interconnected single cylinder is great for homes because it provides security not only through the trusted the Schlage cylinder but also because it allows for immediate egress in case of an emergency. The interior trim opens the door without worrying about unlocking the deadbolt first. This transitional front door lock is versatile. There are a number of both modern and traditional levers and knobs to choose from, all of which look amazing with the Quincey Sideplate. It is also available in a myriad of finishes to match your personal taste. This Quincy Entry Door Lockset will fit standard 2-1/8 inch door preparations with door thicknesses ranging from 1-1/4 inches to 2-3/4 inches thick and with backsets of 2-3/8 inches or 2-3/4 inches.

Features of the Large Quincy Sideplate Lockset:

• Keyway: Schlage C
• Will fit standard 2-1/8" door preparations.
• Solid brass latch with saw-proof insert.

Specifications for the Emtek Quincy 9 Inch Entry Set:

• Material: Brass
• Overall Height: 9"
• Bore Hole Spacing (distance between deadbolt and lever latch): 5-1/2" Center to Center
• Overall Width: 2-5/8"
• Plate Thickness: 3/8"
• Doors Thickness: 1-1/4" - 2-3/4"
• Backset: 2-3/8" or 2-3/4"
• Deadbolt: Full 1" Throw
• Emtek 8980 Specifications (PDF)

Available Functions

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a knob/lever operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
• Interconnected Single Cylinder: The deadbolt is thrown and retracted by a key from the exterior and a thumbturn from the interior. The interior knob/lever opens the door without having to unlock the deadbolt for immediate egress.

Select Function - Important Ordering Guide 8985: Full Dummy Set 8980: Single Cylinder 8980443: Interconnected Single Cylinder Add  $70.40   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US15A: Antique Nickel US19: Matte Black US26: Polished Chrome US7: French Antique US3: Polished Brass   Select Door Thickness  1-1/4" - 1-3/4" Door Thickness 1-3/4" - 2-3/16" Door Thickness 2-1/4" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Trim    C: Cortina Lever   M: Milano Lever   T: Turino Lever   ME: Merrimack Lever   E: Egg Knob   P: Providence Knob   NW: Norwich Knob   W: Waverly Knob   LW: Lowell Clear Crystal Knob   WS: Windsor Clear Crystal Knob   Handing - Important Ordering Guide Right Handing Left Handing   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
