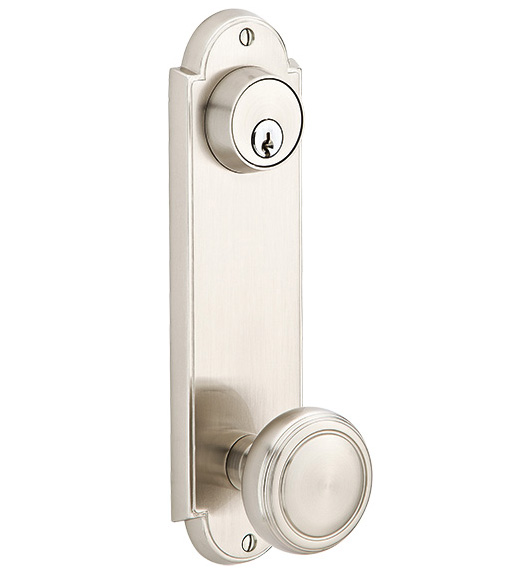

The 9 Inch Delaware Entry Door Lockset with Interconnected Single Cylinder Function has an emergency egress option so that your front door can be opened when locked by simply turning the inside lever or knob. It helps ensure that your family can get out safely in the case of an emergency without having to fiddle with the thumbturn. The Delaware Handleset is available in an array of beautiful finishes. It will fit standard 2-1/8 inch door preparations with door thicknesses ranging from 1-1/4 inches to 2-3/4 inches thick and with backsets of 2-3/8 inches or 2-3/4 inches. This Arched Delaware Entry Door Lockset is the perfect traditional finishing touch for any front door.

Features of the Delaware Entry Door Lockset:

• Keyway: Schlage C
• Will fit standard 2-1/8" door preparations.
• Solid brass latch with saw-proof insert.

Specifications for the Emtek Delaware 9 Inch Entry Set:

• Material: Brass
• Overall Height: 9"
• Bore Hole Spacing (distance between deadbolt and lever latch): 5-1/2" Center to Center
• Overall Width: 2-7/16"
• Plate Thickness: 3/8"
• Doors Thickness: 1-1/4" - 2-3/4"
• Backset: 2-3/8" or 2-3/4"
• Deadbolt: Full 1" Throw
• Emtek 8996 Specifications (PDF)

Available Functions

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a knob/lever operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
• Interconnected Single Cylinder: The deadbolt is thrown and retracted by a key from the exterior and a thumbturn from the interior. The interior knob/lever opens the door without having to unlock the deadbolt for immediate egress.

Select Function - Important Ordering Guide 8856: Full Dummy Set 8996: Single Cylinder 8996443: Interconnected Single Cylinder Add  $70.40   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US15A: Antique Nickel US19: Matte Black US26: Polished Chrome US7: French Antique US3: Polished Brass US3NL: Unlacquered Brass Add  $32.00   Select Trim    C: Cortina Lever   M: Milano Lever   T: Turino Lever   ME: Merrimack Lever   E: Egg Knob   P: Providence Knob   W: Waverly Knob   NW: Norwich Knob   HT: Hampton Clear Crystal Knob   LW: Lowell Clear Crystal Knob   GT: Georgetown Clear Crystal Knob   WS: Windsor Clear Crystal Knob   Select Door Thickness  1-1/4" - 1-3/4" Door Thickness 1-3/4" - 2-3/16" Door Thickness 2-1/4" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Handing - Important Ordering Guide Right Handing Left Handing   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
