| Item No: |
EMT-451721 |
| List Price: |
$690.00 |
| Your Price: |
$552.99 |

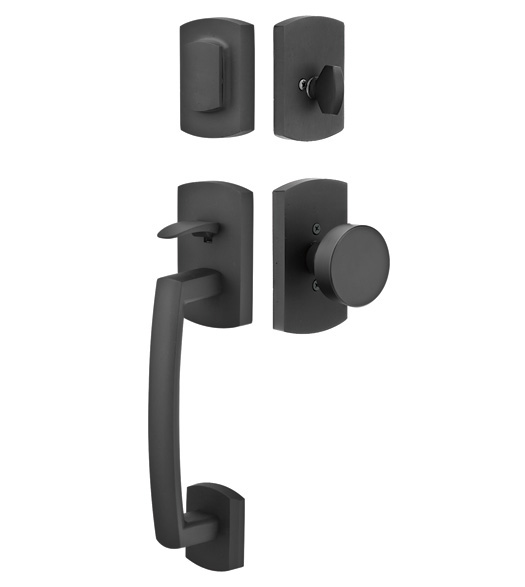

Emtek 451721, Ridgemont Entry Door Handleset with Covered Deadbolt
The Ridgemont Sandcast Bronze Handleset features a covered deadbolt for a unique look. This rustic handleset is available in 3 beautiful finishes: flat black bronze, medium bronze, and white bronze. This old world handleset will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick. The Ridgemont Entry Door Handleset with Covered Deadbolt is available with your choice of interior trim lever or knob for a truly personal look.
Sandcasting is a process for casting metal in sand molds. The mold is made by packing the sand around a pattern. Molten bronze is then poured into a mold cavity formed out of sand. Each sand mold is used only once. The sand is then recycled for the next piece.
Features for the Sandcast Bronze Ridgemont Tubular Handleset:
- Keyway: Schlage C
- UL 180 minute fire rating
- Hardened steel bolt.
- Will fit standard 2-1/8" door preparations.
Specifications for the Emtek Ridgemont Entrance Handleset with Covered Deadbolt:
- Material: Sandcast Bronze
- Exterior Deadbolt Plate Height: 3-1/2"
- Exterior Deadbolt Plate Width: 2-5/8"
- Exterior Top Plate Height: 4-1/2"
- Exterior Top Plate Width: 2-13/16"
- Exterior Bottom Plate Height: 2-3/4"
- Exterior Projection: 2-7/8"
- Exterior Grip Clearance: 2"
- Exterior Grip Thickness: 1/2"
- Interior Deadbolt Plate Height: 3-1/2"
- Interior Deadbolt Plate Width: 2-5/8"
- Interior Trim Plate Height: 4-1/2"
- Interior Trim Plate Width: 2-3/4"
- Door Thickness: 1-3/4" - 3" please specify
- Backset: either 2-3/8" or 2-3/4"
- Distance between Latch Bore to Bottom Mounting Hole: 8-5/8" c.c.
- Emtek 451721 Specifications (PDF)
- Emtek Tubular Entryset Template Specifications (PDF)
When Selecting a Function:
- Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
- Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
Sold Individually
|
