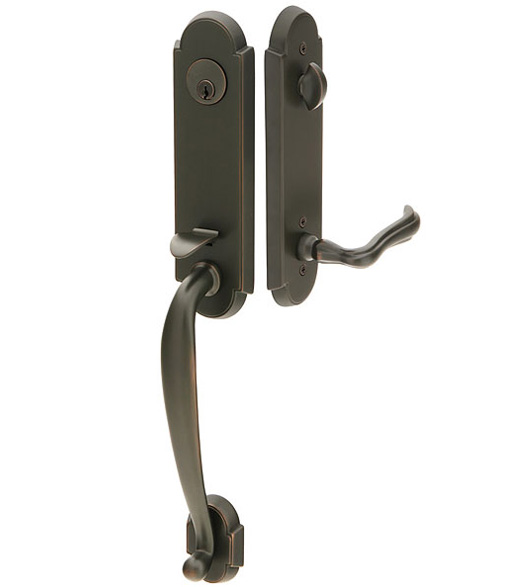

The Richmond Traditional Handleset has that classic look that is so sought after for historic homes. The beautifully crafted arched handleset is available in either a single or a dummy cylinder function. The single cylinder functions just as you might imagine, with a key that operates the deadbolt lock from the exterior and a thumbturn that operates the same lock from the interior. The lower latch is operated by a thumpress from the outside and either a knob or lever from the inside. There are a lot of different knobs and levers to choose from for the interior trim. The Richmond Entrance Handleset will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick. Choose from a huge selection of finishes.

Features for the Richmond Tubular Handleset:

• Keyway: Schlage C
• UL 180 minute fire rating
• Hardened steel bolt.
• Will fit standard 2-1/8" door preparations.

Specifications for the Emtek Richmond Entrance Handleset:

• Material: Brass
• Exterior Overall Height: 18-1/2"
• Exterior Top Plate Height: 9-3/4"
• Exterior Top Plate Width: 2-7/8"
• Exterior Bottom Plate Height: 3"
• Exterior Bottom Plate Width: 2-1/8"
• Exterior Projection: 2-11/16"
• Exterior Grip Clearance: 2"
• Exterior Grip Thickness: 1-1/4"
• Interior Plate Height: 9-3/4"
• Interior Plate Width: 2-7/8"
• Door Thickness: 1-3/4" - 3" please specify
• Backset: either 2-3/8" or 2-3/4"
• Distance between Deadbolt and Lever Latch: 5-1/2" c.c.
• Distance between Latch Bore to Bottom Mounting Hole: 9-7/16" c.c.
• Emtek 4313 Specifications (PDF)
• Emtek Tubular Entryset Template Specifications (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 4303: Full Dummy Set 4313: Single Cylinder   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US15A: Antique Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US7: French Antique US3: Polished Brass US4: Satin Brass US3NL: Unlacquered Brass Add  $40.00   Select Door Thickness  1-3/4" - 2-1/16" Door Thickness 2-1/4" - 2-7/16" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Interior Trim    C: Cortina Lever   M: Milano Lever   T: Turino Lever   E: Egg Knob   MN: Melon Knob   NW: Norwich Knob   P: Providence Knob   W: Waverly Knob   BL: Bristol Clear Crystal Knob   CK: Diamond Clear Crystal Knob   HT: Hampton Clear Crystal Knob   LW: Lowell Clear Crystal Knob   WS: Windsor Clear Crystal Knob   EB: Ebony Black Porcelain Knob   IW: Ice White Porcelain Knob   Handing - Important Ordering Guide Right Handing Left Handing   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
