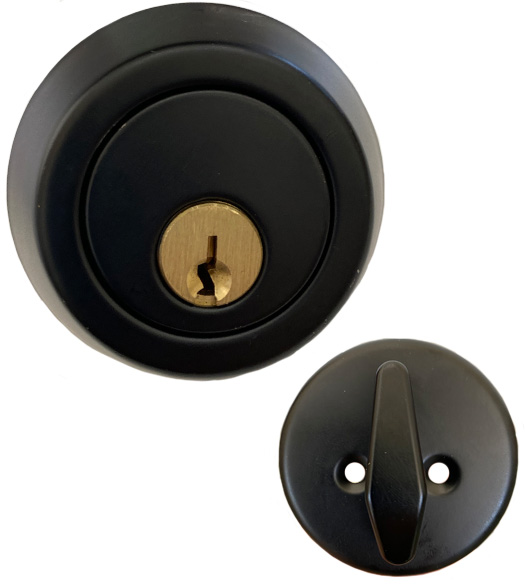

The Satin Black ADA Compliant Single Cylinder Deadbolt is easy to install and will fit many standard doors that are 1-3/8" to 2" thick with backsets of 2-3/8” or 2-3/4″. The ADA Compliant Handicap Door Lock in Satin Black is made for residential and light duty commercial applications. Featuring a 6-pin Schlage "C" keyway, the Imperial USA DL-DB251 Deadbolt is easy to have keyed to match your existing Schlage locks, which means you'll only have one key for all our your doors. This ADA Compliant Handicap Door Lock is an ANSI grade 3 Single Cylinder Door Lock. This deadbolt lock is most often paired with the Interior Satin Black Lever

Single Cylinder Deadbolt: Deadbolt thrown or retracted by key from the outside and by turn unit on the inside. Bolt automatically deadlocks when fully thrown.

Also available: Brushed Stainless Steel ADA Compliant Deadbolt

Specifications of the DL-DB200 Series Handicap Door Lock:

• Finish: Satin Black
• Diameter: 2-1/2"
• Meets ANSI 156.2 grade 3 requirements.
• Door Thickness: Adjustable 1-3/8" to 2"
• Backset: Adjustable 2-3/8” or 2-3/4″
• Latch Bolt: 1" throw
• 1/4″ Heavy Gauge Thru-Bolts
• Lock Cylinder: 6 pin solid brass Schlage "C" keyway standard.
• Handing: Non-handed and reversible

Need a matching door lever? Try Interior Satin Black Lever

Sold Individually

Keying - Important Ordering Guide Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
