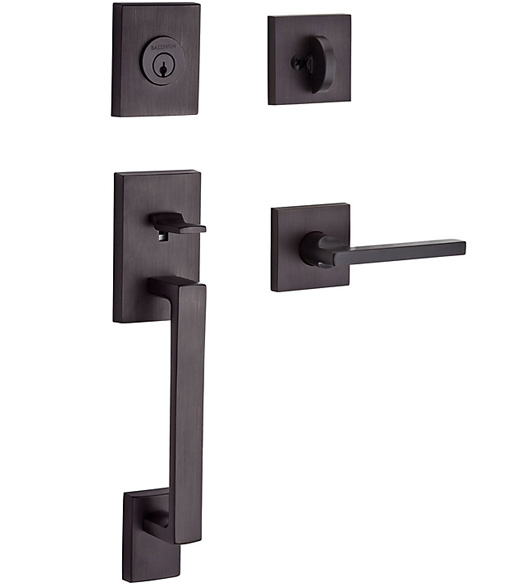

Baldwin LAJ-CSR, La Jolla Handleset
The La Jolla Handleset with Square Rosette is made out of solid brass, making this high quality piece able to stand the test of time. Baldwin has long been a leader in design and craftsmanship and the La Jolla Handleset is a beautifully modern addition to the Reserve Collection. The La Jolla Handleset with Contemporary Square Rose is available in a standard single cylinder function; but you may also choose a dummy function or a double cylinder function. This handleset comes with an adjustable latch that will fit 2-3/4 inch backsets and 2-3/8 inch backsets. It will fit 1-3/4 inch up to 2-1/2 inch thick doors. Choose from your favorite interior trim knob or lever.
Features of the La Jolla Handleset with Contemporary Square Rose:
- Fits 2-1/8" cross bore for both deadbolt and grip with a 1" edge bore for both grip latch and deadbolt latch.
- Baldwin C-Keyway.
- Latch: square corner adjustable
- Strike: square corner
- Brass deadbolt features 1" throw. Grip offers 1/2" passage/privacy function bolt.
- Deadbolt tested to exceed ANSI-BHMA Grade 2 Security.
- Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.
Specifications of the Baldwin Reserve Modern La Jolla Entrance Set:
- Exterior Deadbolt Width: 2-11/16"
- Exterior Deadbolt Height: 3-11/32"
- Interior Deadbolt Width: 2-5/8" square
- Single Cylinder Interior Deadbolt Projection: 1-7/16"
- Double Cylinder Interior Deadbolt Projection: 3/4"
- Exterior Handleset Length (without deadbolt): 12-15/32"
- Exterior Handleset Length center to center (without deadbolt): 8-13/32"
- Exterior Grip Projection: 2-13/32"
- Interior Trim Rose Width: 2-19/32" square
- Door Thickness Standard: 1-3/4" - 2"
- Door Thickness Optional: 1-3/8" - 1-3/4" or 2" - 2-1/2"
- Backset: Adjustable for 2-3/8" or 2-3/4"
When Selecting a Function:
- Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
- Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
- Double Cylinder: From the exterior, a thumb piece operates handleset latch; while from the interior, it is operated by a knob. The deadbolt is operated by a key from both the inside and the outside.
|
