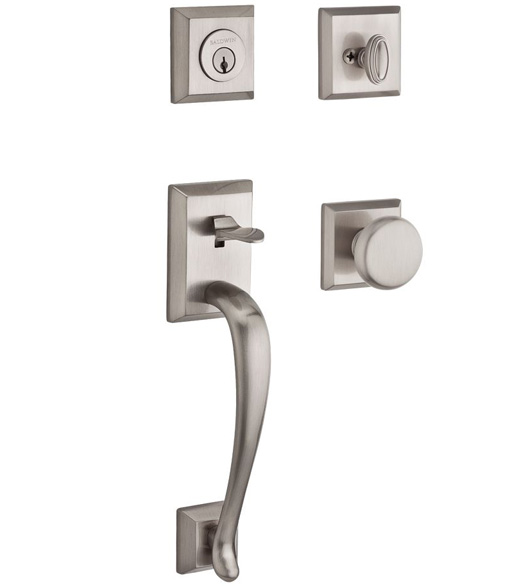

The Napa Handleset is available in a single cylinder, double cylinder, or dummy function. It was designed to fit pre-drilled doors 1-3/8 inches to 2-1/2 inches thick. This Traditional Napa Entrance Set has an adjustable latch for 2-3/8 inch backsets or 2-3/4 inch backsets. Choose from 6 classic knobs and levers for the interior. The Baldwin Napa Front Door Handleset with Square Rose Interior Trim is available in an array of classic finishes.

Features of the Napa Traditional Handleset with Square Rose:

• Fits 2-1/8" cross bore for both deadbolt and grip with a 1" edge bore for both grip latch and deadbolt latch.
• Baldwin C-Keyway.
• Latch: square corner adjustable
• Strike: square corner
• Brass deadbolt features 1" throw. Grip offers 1/2" passage/privacy function bolt.
• Deadbolt tested to exceed ANSI-BHMA Grade 2 Security.
• Warranty: 25 year finish warranty and a limited lifetime mechanical warranty.

Specifications of the Baldwin Napa Traditional Square Handleset:

• Exterior Deadbolt Width: 2-11/16" square
• Interior Deadbolt Width: 2-5/8" square
• Single Cylinder Interior Deadbolt Projection: 1-7/16"
• Double Cylinder Interior Deadbolt Projection: 3/4"
• Exterior Handleset Length (without deadbolt): 11-1/2"
• Exterior Handleset Length center to center (without deadbolt): 8-13/32"
• Exterior Grip Projection: 2-8/9"
• Interior Trim Rose Width: 2-19/32" square
• Door Thickness Standard: 1-3/4" - 2"
• Door Thickness Optional: 1-3/8" - 1-3/4" or 2" - 2-1/2"
• Backset: Adjustable for 2-3/8" or 2-3/4"

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
• Double Cylinder: From the exterior, a thumb piece operates handleset latch; while from the interior, it is operated by a knob. The deadbolt is operated by a key from both the inside and the outside.

Select Function - Important Ordering Guide SC: Single Cylinder DC: Double Cylinder FD: Full Dummy   Select Finish  150: Satin Nickel 003: Polished Brass 055: PVD Polished Nickel 152: Matte Antique Nickel 112: Venetian Bronze 260: Polished Chrome 044: PVD Satin Brass 190: Satin Black   Select Door Thickness  STD: 1-3/4" - 2" Door Thickness THK: 2" - 2-1/2" Door Thickness Add  $16.80 THN: 1-3/8" - 1-3/4 Add  $38.64   Select Interior Trim    ROU: Round Knob   ELL: Ellipse Knob   TRA: Traditional Knob   CUR-RH: Curve Lever (right handing)   CUR-LH: Curve Lever (left handing)   FED-RH: Federal Lever (right handing)   FED-LH: Federal Lever (left handing)   DEC-RH: Decorative Lever (right handing)   DEC-LH: Decorative Lever (left handing)   Select Keying Options - Important Ordering Guide I only ordered one Non-Keyed (dummy) Keyed Differently Keyed Alike Add  $5.50
