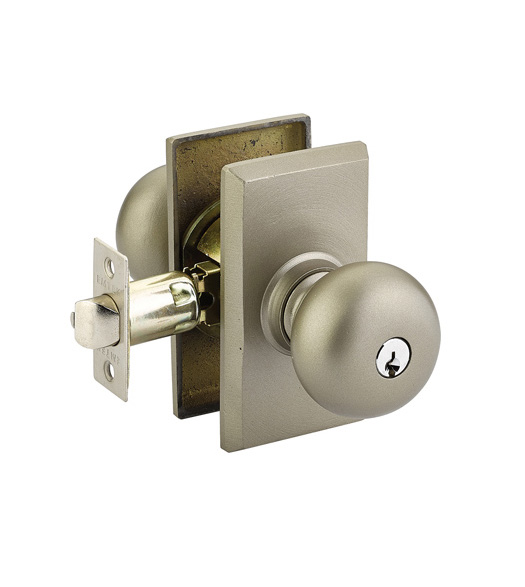

Emtek 5103WC, Winchester Knob with Rectangular #3 Rosette
The Winchester Keyed Sandcast Bronze Knob with Rectangular Rose is easy to install. It will fit 1-1/4 inch to 2-3/4 inch thick doors and has an optional latch to accommodate either a 2-3/4 inch or a 2-3/8 inch backset. The Winchester Knob with Rectangular #3 Rosette is available in a keyed entry function and also a non-active dummy function. The keyed entry is operated by a key from the exterior and a thumbturn from the interior. Choose from flat black bronze, medium bronze, and white bronze finishes.
Sandcasting is a process for casting metal in sand molds. The mold is made by packing the sand around a pattern. Molten bronze is then poured into a mold cavity formed out of sand. Each sand mold is used only once. The sand is then recycled for the next piece.
Also Available Matching Winchester Knob with Rectangular Rose
Features and Specifications for the Sandcast Bronze Half Round Knob with #3 Rose:
- Material: Sandcast Bronze
- Knob Diameter: 2-1/4"
- Knob Projection: 2-1/2"
- Rose Height: 4-1/2"
- Rose Width: 2-1/2"
- Rose Thickness: 3/4"
- Doors Thickness: 1-1/4" - 2-3/4"
- Backset: 2-3/8" or 2-3/4"
- Keyway: Schlage C
- Will fit standard 2-1/8" door preparations.
Available Functions
- Keyed Entry (Keyed Lock): Use when a keyed lock is needed. The lock is operated by a key from the exterior and a thumbturn on the knob from the interior. Complete set - 2 knobs, 2 roses, keys, door latch, and strike plate.
- Dummy: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
|
