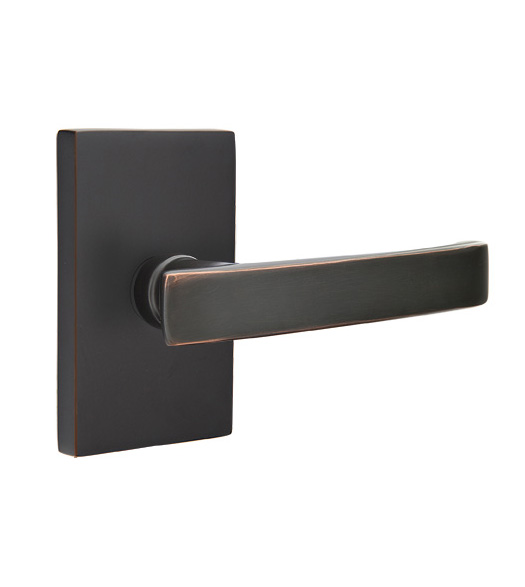

Made by Emtek, the Geneva Lever with Rectangular Rose is a simple lever with a modern design. It is paired with the rectangle rose that transforms this leverset into something truly contemporary. The sleek design allows for the Geneva Lever with Modern Rectangular Rosette to look great in all contemporary decors. It is available in several popular finishes. Easy to install, the Geneva Leverset will fit 1-1/4 inch to 3 inch thick doors and has an optional 2-3/8 inch or 2-3/4 inch backset.

Features of the Contemporary Geneva Door Lever with Modern Rectangle Rose:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Lever is surface mounted (rosette screws to the door's face).
• Solid brass lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Modern Geneva Leverset with Rectangular Rose:

• Material: Brass
• Lever Length: 5-1/4"
• Lever Projection: 2-1/8"
• Clearance: 1"
• Rose Height: 4"
• Rose Width: 2-1/2"
• Door Thickness: 1-1/4 - 3"
• Backset: 2-3/8" or 2-3/4"

Available Functions:

• Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Levers are Handed. Handing Guide

Select Function - Important Ordering Guide 5052GV: Double Dummy 5112GV: Passage (hall or closet) 5212GV: Privacy (bedroom or bathroom)   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $16.00   Select Door Thickness  1-1/4" - 2" Door Thickness 2" - 2-1/2" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing
