The KABA Simplex 9040000 mechanical pushbutton keypad deadbolt lock set. 1" Throw Deadbolt Latch - Unlock door with the pushbutton keypad from the outside. Ideal for locations with frequent personal turnover - no keys required. Easy to install, program and maintain.

Use on doors such as conference rooms, offices, house/building entry doors, utility room doors and work shops. Unlock door for exterior with single access combination code while allowing free egress at all times by interior thumbturn.

Other Simplex 900 Series Models:
KABA Simplex 9020000 Keypad Deadbolt for 1-3/8" Door Thickness
KABA Simplex 9100000 Keypad Deadbolt With Key Override
KABA Simplex 9170000 Keypad Deadlatch for 1-3/8" Door Thickness
KABA Simplex 9190000 Keypad Deadlatch for 1-3/4" Door Thickness
KABA Simplex 9380000 Keypad Deadlatch With Key Override and Latch Holdback
KABA Simplex 9290000 Keypad Deadlatch Department of Defense (DOD) Compliant

Features of the KABA Simplex 9040000 Deadbolt

• Easy to maintain - no batteries to replace.
• Durable heavy-duty construction.
• Single access code—one easy to manage code for all users
• Easily programmed with Allen wrench without removing lock from the door
• Highly weather resistant

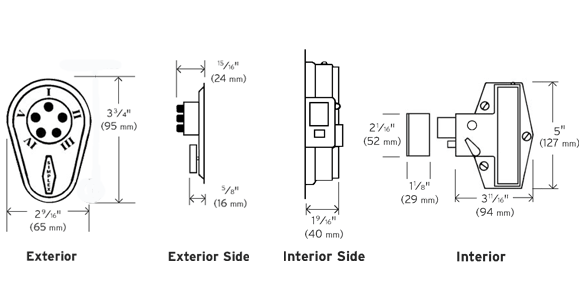

Specifications of KABA Simplex 9040000 Deadbolt

• Construction: All metal cast rear housing. Force-proof clutch protected thumbturn. Brass exterior trim plate
• Door Thickness: 1-3/4" to 2-1/8". For thinner doors use: KABA Simplex 9020000
• Installation: Rim type deadbolt surface mounted on inside of door. Through bore 1-5/8" diameter for barrel; 3/4" diameter for thumbturn. Face plate covers mounting holes.
• Backset: 2-1/2" for inswing doors; 2-9/16" for outswing doors.
• Latch: 1" deadbolt.
• Strike: Includes strike plate for outswing doors and cast box strike for inswing doors.
• Handing: Non-handed, field reversible.
• Numeric Keypad: Vandal resistant, mechanical 5 button keypad with Roman numerals.
• Warranty: One (1) Year.
• KABA Simplex 900 Series Specifications (PDF)
• KABA Simplex 900 Series Installation (PDF)

Note: A Metal Door Adaptor Strike Kit is required for installing KABA 900 series locks on Metal doors and Metal door frames.
