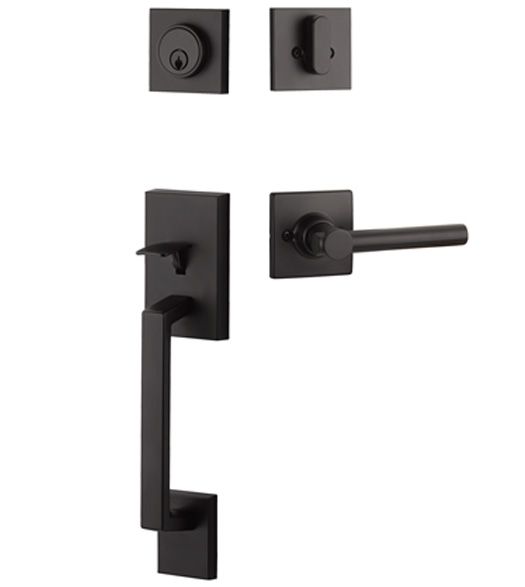

Designed for easy installation, the Marcel Entry Door Handleset with the Holden Lever is a direct replacement for most modern front door handlesets. It will fit 5-1/2 inch center to center prep and comes packaged with an adjustable latch to fit 2-3/4 inch or 2-3/8 inch backsets. It is also adjustable to fit standard door thicknesses from 1-3/8 inches to 1-3/4 inches. The Marcel Entry Set with Holden Lever is a transitional front door lock that is perfect for modernising your home. The clean lines of the square escutcheon plates add curb appeal to your home; and the Holden Lever interior trim will add a fresh look inside.

Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a lever operates the latch.

Specifications for the Yale Marcel Entrance Handleset:

• Material: Brass
• Keyway: Schlage C
• Center to Center Door Prep: 5-1/2"
• Exterior Deadbolt Plate Height: 2-1/2" square
• Exterior Top Plate Width: 2-1/2"
• Exterior Bottom Plate Width: 1-3/4"
• Exterior Projection: 2-1/4"
• Exterior Grip Clearance: 1-5/8”
• Interior Deadbolt Plate Height: 2-7/16" square
• Interior Trim Plate Height: 2-1/2" square
• Interior Lever Length: 4-1/8"
• Interior Lever Projection: 2-1/2"
• Interior Lever Clearance: 1-3/4
• Door Thickness: adjustable for 1-3/8" - 1-3/4"
• Backset: adjustable 2-3/8" or 2-3/4"
• Door Specs: 2-1/8” face bore, 1” edge bore, 1” x 2-1/4” radius corner
• Handing: non-handed
• Keyway: Schlage C
• Yale YMRC44-HLD Specifications (PDF)

Sold Individually

Select Finish    US4: Satin Brass   US15: Satin Nickel   US26: Polished Chrome   US19: Matte Black   Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
