| Item No: |
EMT-451411 |
| List Price: |
$690.00 |
| Your Price: |
$552.99 |

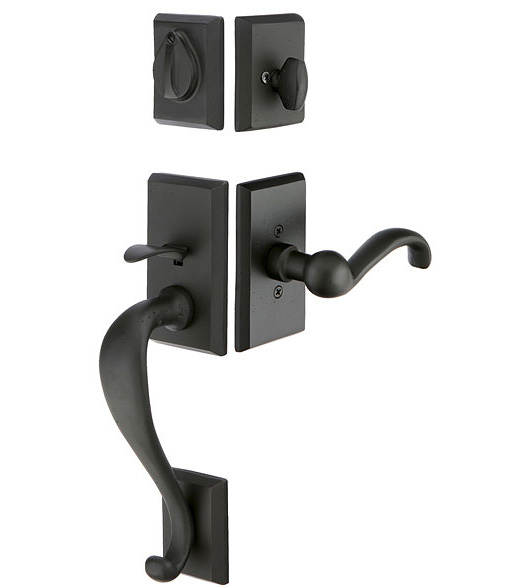

Emtek 451411, Traditional Rectangular Handleset with Covered Deadbolt
The Two Piece Rectangular Sandcast Bronze Handleset has a traditional look thanks to the S grab. This Sandcast Bronze Rectangular Tubular Handleset is available in flat black bronze, medium bronze, and white bronze finishes. Choose from several stunningly designed interior trim knobs and levers. It will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 2-7/8 inches thick. The Traditional Rectangular Handleset with Covered Deadbolt is available in single cylinder and dummy functions.
Sandcasting is a process for casting metal in sand molds. The mold is made by packing the sand around a pattern. Molten bronze is then poured into a mold cavity formed out of sand. Each sand mold is used only once. The sand is then recycled for the next piece.
Features for the Sandcast Bronze Rectangular Tubular Handleset:
- Keyway: Schlage C
- UL 180 minute fire rating
- Hardened steel bolt.
- Will fit standard 2-1/8" door preparations.
Specifications for the Emtek Rectangular Sectional Handleset:
- Material: Sandcast Bronze
- Exterior Deadbolt Plate Height: 3"
- Exterior Deadbolt Plate Width: 2-3/8"
- Exterior Top Plate Height: 4-3/4"
- Exterior Top Plate Width: 2-13/16"
- Exterior Bottom Plate Height: 3"
- Exterior Bottom Plate Width: 2-3/16"
- Exterior Projection: 3"
- Exterior Grip Clearance: 1-7/8"
- Exterior Grip Thickness: 1-11/16"
- Interior Deadbolt Plate Height: 3"
- Interior Deadbolt Plate Width: 2-7/16"
- Interior Trim Plate Height: 4-1/2"
- Interior Trim Plate Width: 2-1/2"
- Door Thickness: 1-3/4" - 2-7/8" please specify
- Backset: either 2-3/8" or 2-3/4"
- Distance between Latch Bore to Bottom Mounting Hole: 6-7/8" c.c.
- Emtek 451411 Specifications (PDF)
- Emtek Tubular Entryset Template Specifications (PDF)
When Selecting a Function:
- Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
- Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
Sold Individually
|
