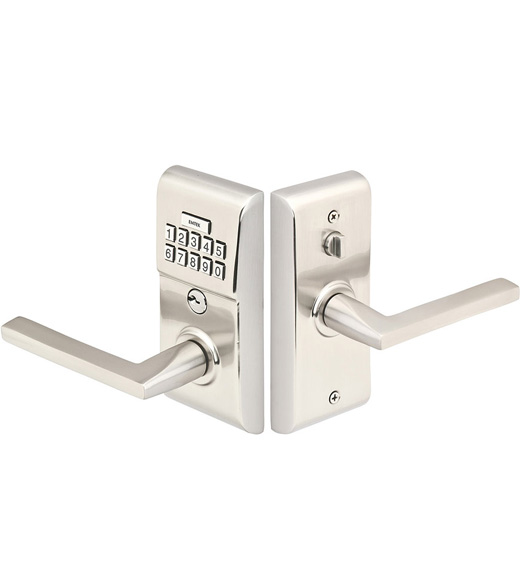

The Modern Brass Keypad Leverset is the perfect choice to control who can enter a room. This Keypad Leverset has has two functions: Locked Mode and Passage Mode. See below for more details. The Modern Keypad Leverset can be programmed with up to 20 codes and comes factory programmed with 2 unique codes so you can use your new electronic door lock right away. It is easy to install and will fit many pre-drilled doors. Choose your backset and your trim lever.

Your Electronic Keypad can be used two ways by simply turing the button on the interior rose.

Passage Function in Locked Mode: Outside lever is always locked and requires the use of a code or the back-up key for entry. The inside lever is always free.
Passage Function in Passage Mode: Outside and Inside lever are always free. No code or the key needed for entry.

Features of the Emtek E2020 Touch Pad Lock:

• Will fit standard 2-1/8" door preparations.
• Easy to use installation and programming instructions included.
• Factory programmed with 2 unique, secure user codes for use right out of the box.
• Can be programmed with up to 20 user codes of your choice.
• Codes can be added and deleted.
• Easy lock operation, simply push the Emtek button and turn the exterior thumb turn to lock.
• Easy unlock operation, enter the 4 digit code and turn the exterior thumb turn.
• Programming changes can be made easily using the keypad.
• Illuminated keypad for easy and quick operation after dark.
• Low battery indicator lets you know when it’s time to change the battery.
• Backup Keyway: Schlage C
• Used 9-volt battery

Specifications for the Modern Brass Electronic Lock:

• Width: 2-3/4"
• Height: 6-1/8"
• Exterior Projection: 3"
• Interior Projection: 3"
• Button Size: 1/4" W x 3/8" H
• Door Thickness: 1-3/4" - 2-1/4"
• Backset: either 2-3/8" or 2-3/4"
• Package includes: latch, strike plate, and 9-volt battery.
• Emtek E2020 Specifications (PDF)

Sold Individually

Select Finish  US15: Satin Nickel US10B: Oil Rubbed Bronze US19: Matte Black US26: Polished Chrome   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Interior Trim    ATN: Athena Lever   BA: Basel Lever   GV: Geneva Lever   HLO: Helios Lever   HEC: Hercules Lever   HER: Hermes Lever   LU: Luzern Lever   MC: Mercury Lever   FRL: Freestone Lever   POS: Poseidon Lever   SIO: Sion Lever   STU: Stuttgart Lever   TRT: Triton Lever   TAKN: T-Bar Knurled Lever   TATR: T-Bar Tribeca Lever   TAHA: T-Bar Hammered Lever   MYL: Myles Lever   AC: Arts in Crafts Lever (NA Polished Chrome)   Handing - Important Ordering Guide Right Handing Left Handing   Select Backup Keyway Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
