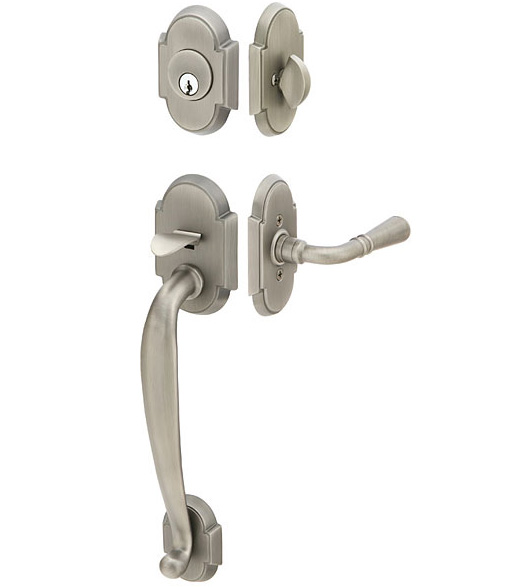

The Two Piece Arched Nashville Handleset will fit in nicely with your home's country decor. This traditional handleset is perfect for adding a classic look to any front door. It is easy to install and will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick. The Nashville Handleset is available in both a dummy and a single cylinder function. Choose from a wide array of beautiful finishes. The interior trim knobs and levers are also available in a bunch of different styles, so you'll be able to find the perfect look for your space.

Features for the Nashville Tubular Handleset:

• Keyway: Schlage C
• UL 180 minute fire rating
• Hardened steel bolt.
• Will fit standard 2-1/8" door preparations.

Specifications for the Emtek Nashville Entrance Handleset:

• Material: Brass
• Exterior Deadbolt Height: 3-5/8"
• Exterior Deadbolt Width: 2-1/2"
• Exterior Handle Top Plate Height: 4-1/2"
• Exterior Handle Top Plate Width: 2-3/4"
• Exterior Handle Bottom Plate Height: 3"
• Exterior Handle Bottom Plate Width: 2-1/8"
• Exterior Projection: 2-11/16"
• Exterior Grip Clearance: 1-15/16"
• Exterior Grip Thickness: 1-1/4"
• Interior Deadbolt Height: 3-5/8"
• Interior Deadbolt Width: 2-1/2"
• Interior Trim Rose Height: 4-3/8"
• Interior Trim Rose Width: 2-9/16"
• Door Thickness: 1-3/4" - 3" please specify
• Backset: either 2-3/8" or 2-3/4"
• Distance between Latch Bore to Bottom Mounting Hole: 9-7/16" c.c.
• Emtek 4312 Specifications (PDF)
• Emtek Tubular Entryset Template Specifications (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 4302: Full Dummy Set 4312: Single Cylinder   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US15A: Antique Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US7: French Antique US4: Satin Brass US3: Polished Brass US3NL: Unlacquered Brass Add  $40.00   Select Door Thickness  1-3/4" Door Thickness 1-7/8" - 2-1/4" Door Thickness 2-3/8" - 2-3/4" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Interior Trim    C-RH: Cortina Lever (Right Handing)   C-LH: Cortina Lever (Left Handing)   M-RH: Milano Lever (Right Handing)   M-LH: Milano Lever (Left Handing)   T-RH: Turino Lever (Right Handing)   T-LH: Turino Lever (Left Handing)   E: Egg Knob   MN: Melon Knob   NW: Norwich Knob   P: Providence Knob   W: Waverly Knob   BL: Bristol Clear Crystal Knob   CK: Diamond Clear Crystal Knob   HT: Hampton Clear Crystal Knob   LW: Lowell Clear Crystal Knob   WS:Windsor Clear Crystal Knob   EB: Ebony Black Porcelain Knob   IW: Ice White Porcelain Knob   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
