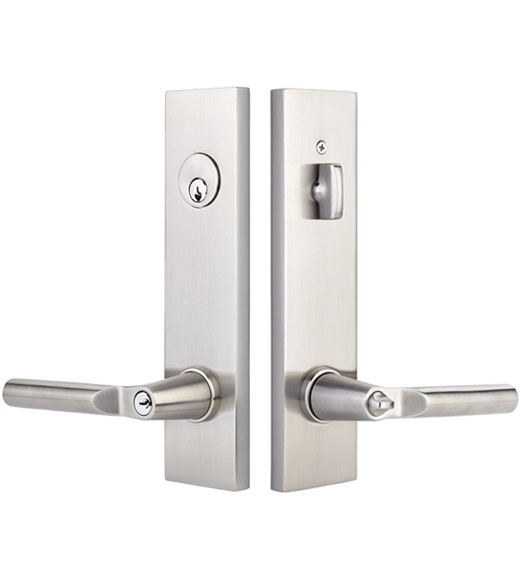

The Modern Rectangular Two-Point Lock will fit most standard pre-drill doors. It is available in 2-3/8 inch backset or 2-3/4 inch backset for doors 1-1/4 inches thick to 1-3/4 inches thick. A dual-keyed entryset, it features a keyed deadbolt as well as a lock on the trim kbo /lever. The Modern Dual Keyed Entryset is available in a wide range of modern finish colors with your choice of accompanying trim knob or lever.

Features of the Modern Dual Keyed modern Tubular Lockset:

• Keyway: Schlage C
• Will fit standard 2-1/8" door preparations.
• Threaded Tubes and Machine Screws

Specifications for the Emtek Modern Two-Point Locking Entry Set:

• Material: Brass
• Overall Height: 10-1/4"
• Bore Hole Spacing (distance between deadbolt and lever latch): 5-1/2" Center to Center
• Overall Width: 2-1/2"
• Doors Thickness: 1-1/4" to 2-1/4"
• Backset: 2-3/8" or 2-3/4"
• Deadbolt: Full 1" Throw
• Inside Passage Half Spindle
• 1" Wood Screws
• Full-Lip Strike Plate
• Emtek 5312 Specifications (PDF)

Available Functions

• Single Cylinder: The deadbolt is thrown and retracted by a key from the exterior and a thumbturn from the interior. The second lock on the exterior handle underneath the deadbolt is operated by a thumbturn on the interior knob/lever and by a key from the exterior.
• Dummy Pair: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.

Select Function - Important Ordering Guide 5312: Single Cylinder 5362: Dummy Pair   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $32.00   Select Door Thickness  1-1/4" - 1-3/4" Door Thickness 1-3/4" - 2-1/4" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Trim    HLO: Helios Lever   HN: Hanover Lever   LU: Luzern Lever   ROU: Round Knob   Handing - Important Ordering Guide Right Handing Left Handing   Keying - Important Ordering Guide Non-Keyed (Dummy Pair Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $11.00
