Bommer
Surface Mount Gravity Pivot Hinge with Hold Open, Bommer 7512-H
$88.00
/ unit
Out of Stock ā Notify me
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

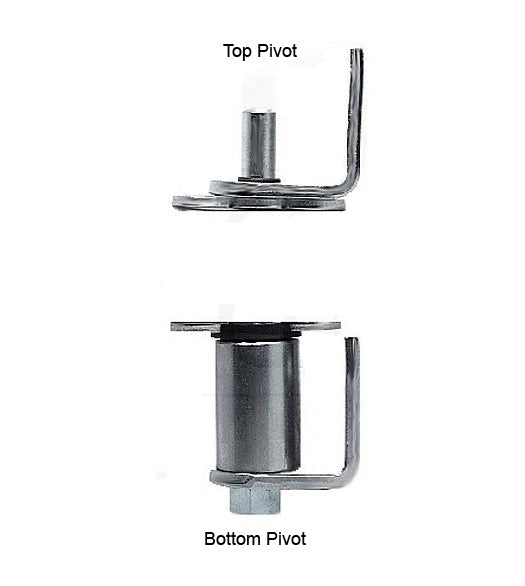

The Bommer 7512-H-603 is a surface-mounted gravity pivot hinge designed for doors up to 30 inches wide. This unit features a hold open function, requiring the door to be opened at least 90 degrees to engage the automatic closing mechanism.
Constructed of cast steel with a zinc plated finish, this gravity pivot hinge accommodates door thicknesses ranging from 7/8" to 1-5/8" and supports a maximum door weight of 50 lbs. Sold as a set includes one pivot, one jamb bracket, one top pivot assembly, and mounting hardware.
Also available: With out the hold open use Bommer 7512 Pivot Hinge and Bommer 7514 Box Clamp Mount Gravity Door Pivot Hinge.
Material & Finish
Finish
Zinc plated Steel
Other
Maximum Door Width
30"
Maximum Door Thickness
For Louvered Doors 7/8" to 1-5/8" thick
Maximum Door Weight
50 lbs.
Flat Door Bracket
For doors not less than 7/8" thick
Flat Jamb Bracket
1-1/4" Wide
Questions about this product? Call 954-776-5340 or send us a message below.
