The Bommer 7512 is a Surface Mount Gravity Door Pivot Hinge, constructed from cast steel and designed for high-capacity door applications.
This unit accommodates doors up to 30 inches wide and supports a maximum door weight of 50 lbs. It fits louvered doors ranging from 7/8" to 1-5/8" thick.

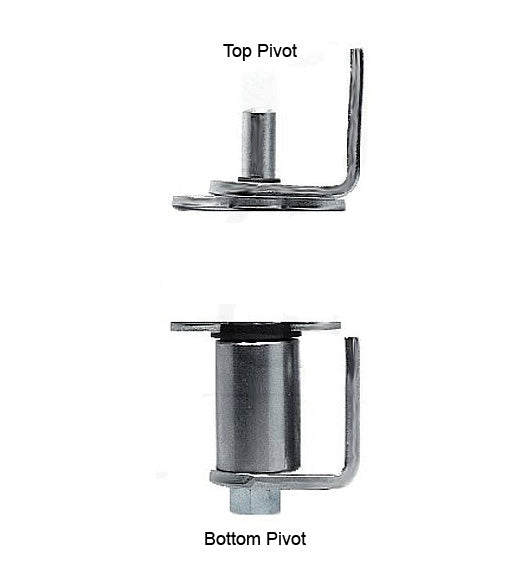

Sold as a complete set for one door, including the top pivot assembly, jamb bracket, door bracket, and mounting hardware. Note: This item is discontinued; a direct fit replacement is available.
Also available: With hold open use Bommer 7512-H Pivot Hinge with Hold Open and Bommer 7514 Box Clamp Mount Gravity Door Pivot Hinge.
Other
Maximum Door Width
30"
Maximum Door Thickness
For Louvered Doors 7/8" to 1-5/8" thick
Maximum Door Weight
50 lbs.
Flat Door Bracket
For doors not less than 7/8" thick
Flat Jamb Bracket
1-1/4" Wide
