Bommer
Surface Mount Brass Spring Door Pivot Hinge with Adjustable Tension, Bommer 7312
$497.98
/ unit
Out of Stock — Notify me
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The Bommer 7312-626 is a surface-mounted spring door pivot hinge constructed from cast brass, featuring adjustable tension for precise operation. This hinge is designed to handle demanding door applications and provides reliable support for heavy use.
The pivot hinge is engineered for robust performance, supporting doors up to 36 inches wide and 2-1/2 inches thick, with a maximum door weight capacity of 75 lbs. It allows a maximum swing of 130º in each direction.

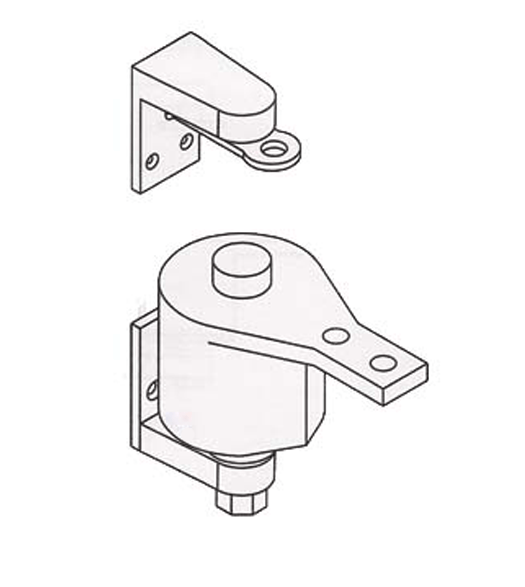

The installation kit includes one pivot, one jamb bracket, and one top pivot assembly, providing all necessary components for a complete door installation.
Material & Finish
Finish
626 Satin Chrome
Other
Maximum Door Width
36"
Maximum Door Thickness
2-1/2"
Maximum Door Weight
75 lbs.
Maximum Swing
130º each direction
Flat Door Bracket
For doors not less than 1" thick
Flat Jamb Bracket
1-1/4" Wide
Questions about this product? Call 954-776-5340 or send us a message below.
