Bommer

Surface Mount Gravity Door Pivot Hinge, Bommer 7412

SKU: BOM-7412
$212.02 $353.36Save $141.34/ unit
Out of Stock — Notify me
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

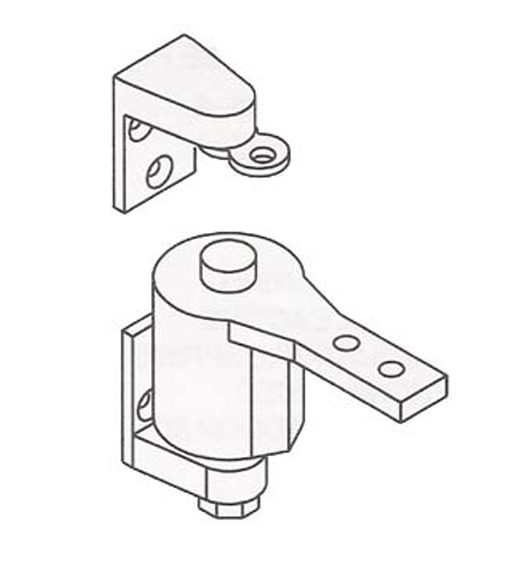

The Bommer 7412 is a Surface Mount Gravity Door Pivot Hinge, designed for cast brass construction and installation on select door assemblies.

This pivot hinge is engineered to accommodate doors up to 24" wide and 1-7/8" thick, supporting a maximum door weight of 35 lbs.

Each set includes the pivot, jamb bracket, door bracket, top pivot assembly, and mounting hardware required for one door installation.

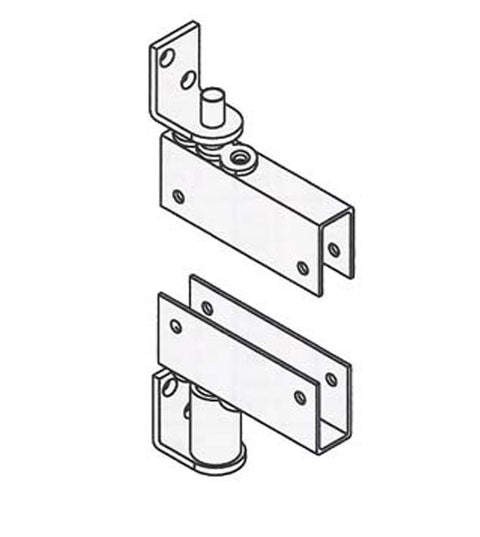

Also available: Bommer 7411 Box Clamp Mount Gravity Door Pivot Hinge.

Bommer made in the USA
Other
Maximum Door Width 24"
Maximum Door Thickness 1-7/8"
Maximum Door Weight 35 lbs.
Flat Door Bracket For doors not less than 3/4" thick
Flat Jamb Bracket 1-1/4" Wide

Questions about this product? Call 954-776-5340 or send us a message below.
