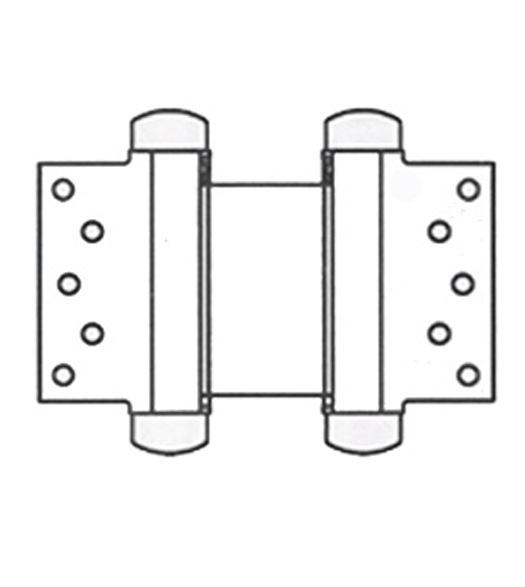

Bommer 3023-6, 6 Inch Double Acting Spring Hinge

6" Double Acting Spring Hinge. Half Surface type - door flange is surface applied to face of door. Jamb flange is surface applied to door jamb. For doors 1-1/4" to 1-3/4" thick. Packaged with all wood screws.

Specifications of the Bommer 3023-6 Double Acting Spring Hinge:

  • Material: Steel
  • Hinge Size: 6"
  • Non-Template
  • Non-Handed
  • Hinge Mounting Type: Half Surface
  • Door Thickness: 1-1/4" to 1-3/4" Thick Doors
  • Maximum Swing: 90º each direction
  • Bommer 3023-6 Dimension Diagram (PDF)

Bommer 3023-6 Hinge Selection for Maximum Door Size
Bommer Hinge Number 2 Hinges 3 Hinges Door Thickness Min. Door Height
Door Weight Door Width Door Weight Door Width
3023-6 75 lbs 2'-8" 107 lbs 3'-0" 1-1/4" - 1-3/4" 7'-0"
Note: Do Not use on Doors with Hinge Edge Beveled.

Sold as a Pair (2 Hinges).

** This item is being discontinued. Very limited quantities available.

Dimensions & Fit
Door Thickness 1-1/4" to 1-3/4" Thick Doors
Material & Finish
Material Steel
Other
Hinge Size 6"
Hinge Mounting Type Half Surface
Maximum Swing 90º each direction
