Bommer
6 x 4-1/2 Template Mortise Double Acting Spring Hinge, Pair, Bommer 3029-6x4.5
$382.93
/ unit
Out of Stock — Notify me
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

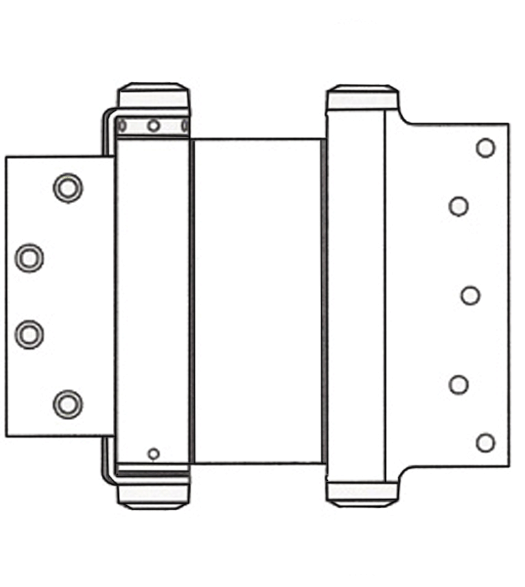

The Bommer 3029-6x4.5 is a Double Acting Spring Hinge designed for use with Hollow Metal Doors. This mortise-type hinge facilitates door operation on doors up to 1-3/4" thick.
The hinge features a 6" x 4-1/2" template hole pattern. The door flange is mortised into the door edge, while the jamb flange is surface applied to the door jamb. This unit is sold as a pair.
Note that this item is discontinued. Please consult the available direct fit replacement PBB-DA816045 for current stock information.
Also available : Bommer CL3029-6x4.5 6" x 4-1/2" Double Acting Spring Hinge with Ball Tips
Dimensions & Fit
Door Thickness
1-3/4" Thick Doors
Material & Finish
Material
Steel
Finish
Zinc Plated
Other
Hinge Size
6"
Hinge Type
Mortise
Maximum Swing
90º each direction
Questions about this product? Call 954-776-5340 or send us a message below.
