The Myles Lever with Rectangular Rosette has a two-piece design that has risen in popularity in the last few years for its sleek, contemporary look. This Modern Myles Leverset with Rectangle Rose is available in a wide array of popular finishes. Choose from dummy, passage, or privacy functions. The Myles Lever with Modern Rectangular Rose will fit 1-1/4 inch to 3 inch thick doors and has an optional 2-3/8 inch or 2-3/4 inch backset.

Features of the Contemporary Myles Door Lever with Modern Rectangle Rose:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Lever is surface mounted (rosette screws to the door's face).
• Solid brass lever and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Modern Myles Leverset with Rectangular Rose:

• Material: Brass
• Lever Length: 5-3/8"
• Lever Projection: 2-1/8"
• Stem Diameter: 7/8"
• Handle Diameter: 7/8"
• Clearance: 1-1/4"
• Rose Height: 4"
• Rose Width: 2-1/2"
• Door Thickness: 1-1/4 - 3"
• Backset: 2-3/8" or 2-3/4"

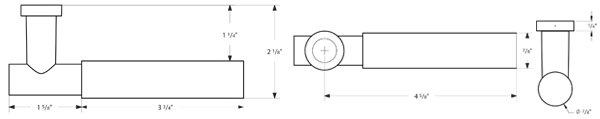

• Emtek Myles Lever Dimensions Diagram (PDF)

Available Functions:

• Double Dummy: No door latch. Door levers on both sides of the door. Package Includes: 2 levers, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 levers, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside lever will release privacy push button and retract the door latch. Package Includes: 2 levers, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

Levers are Handed. Handing Guide

Select Function - Important Ordering Guide 5052MYL: Double Dummy 5112MYL: Passage (Hall or Closet) 5212MYL: Privacy (Bedroom or Bathroom)   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $16.00   Select Door Thickness  1-1/4" - 2" Door Thickness 2" - 2-1/2" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide RH: Right Handing LH: Left Handing
