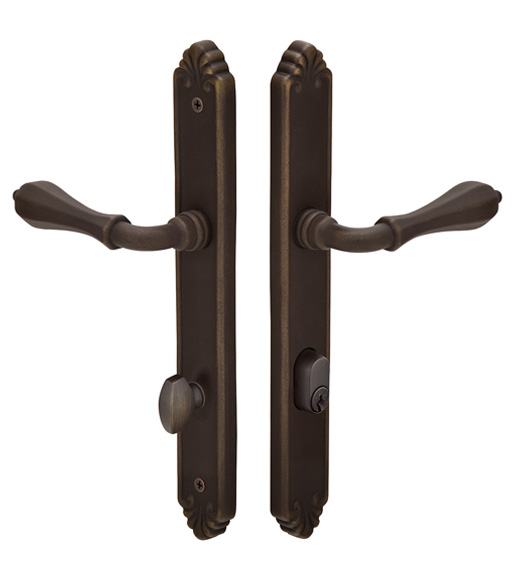

The 1-1/2 x 11 Tuscany American Cylinder Multi-Point Trim with 3-5/8 Inch c.c. is a direct replacement for Milgard and Pella brand patio door trims. It is a stunning example of Tuscan decor, emphasizing the attention to natural detail and metal construction that has made this Mediterranean style so popular all over the globe. The Tuscany Style Multi Point Trim with American Cylinder is made out of cast bronze and is available in flat black or medium bronze finishes. It is available with your choice of trim lever for an unique style that is all your own. The Bronze Tuscan Style Multi Point Trim features Emtek's multipoint door configuration #6--which means the American Cylinder Hub is below the handle with a 3-5/8 inch center to center.

This multipoint trim set is intended to replace the trim from Milgard and Pella brand patio doors. The lock to lever distance is 3-5/8" (92 mm). This set does not come packaged with the multipoint lock mechanism (the vertical rods found in multipoint patio doors that secure the door to the frame) as those are typically preinstalled in multipoint doors and cannot be replaced.

Features and Specifications of the Bronze Tuscan Style Multi Point Trim with Door Configuration #6:

• Material: Lost Wax Cast Bronze
• Overall Height: 11"
• Overall Width: 1-1/2"
• Distance Between Trim and Cylinder or Thumbturn (for Keyed, Passage, and Patio Functions): 3-5/8"
• Mounting Centers: 8-3/8"
• Plate Thickness: 3/8"
• Door Thickness: 1-5/8" - 2-3/4" please specify.
• Solid steel spindle.
• Emtek 1635 Dimensions (PDF)

Available Functions:

• Dummy Pair, Active (inside): Active lever inside with fixed inactive lever outside. For use as a pull or to match trim. Normally used on inactive French door. Set includes: Two (2) backplates, Two (2) levers with spindles and mounting screws.
• Dummy Pair, Inactive: Fixed inactive levers both sides of door. For use as a pull or to match trim. Normally used on inactive French door. Set includes: Two (2) backplates, Two (2) levers with spindles and mounting screws.
• Passage: Active levers both sides of door. Set includes: Two (2) backplates, Two (2) levers with spindles, and mounting screws.
• Patio: Active levers both sides of door. Thumb turn inside to lock door. Set includes: Two (2) backplates, Two (2) levers with spindles, One (1) interior thumb turn and mounting screws.
• Keyed Entry: Active levers both sides of door. Keyed lock cylinder outside with thumb turn inside to lock door. Set includes: Two (2) backplates, Two (2) levers with spindles, Two (2) cylinder collars, One (1) american profile cylinder with key outside & thumb turn inside and mounting screws.

Choose any of the different levers to complete your handleset.

Select Function - Important Ordering Guide 1634: Dummy Pair, Active (Fixed lever exterior/active lever interior) 1635: Dummy Pair, Inactive (Fixed levers both sides of door) 1632: Passage (Active levers both sides of door) 1633: Patio (Active levers both sides of door and interior thumbturn) 1631: Keyed Entry   Select Finish  FB: Flat Black Bronze Patina MB: Medium Bronze Patina   Select Trim    MDI: Medici Lever   NA: Napoli Lever   OCL: Octagon Lever   PD: Padua Lever   Select Door Thickness  1-5/8" - 1-15/16" Door Thickness 2" - 2-3/4" Door Thickness   Handing - Important Ordering Guide Right Handing Left Handing   Keying - Important Ordering Guide Non-Keyed (Passage, Patio, and Dummy Functions) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
