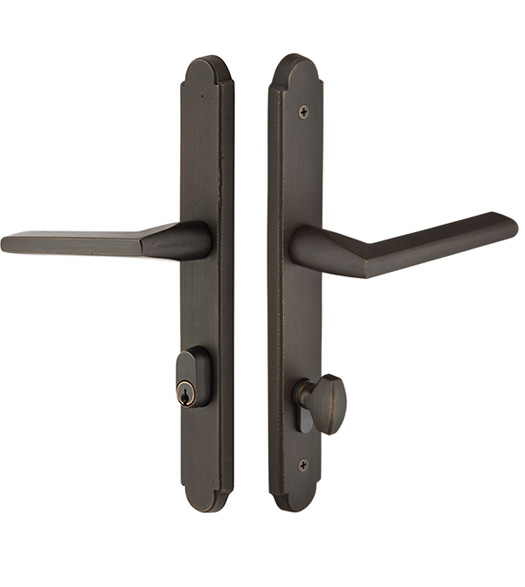

The Sandcast Bronze Arched American Cylinder Multi-Point Trim is 11 inches tall and 1-1/2 inches wide. It features an American Cylinder Hub below the handle with a 3-5/8 inch center to center. This Arched Style Multi Point Trim with American Cylinder Below Handle has a rustic look that makes it a great choice or ranch or cottage style homes. It is available in flat black bronze, medium bronze, and white bronze finishes. Choose from a wide selection of levers for an end look that matches your home's decor.

This multipoint trim set is intended to replace the trim from Milgard and Pella brand patio doors. The lock to lever distance is 3-5/8" (92 mm). This set does not come packaged with the multipoint lock mechanism (the vertical rods found in multipoint patio doors that secure the door to the frame) as those are typically preinstalled in multipoint doors and cannot be replaced.

Sandcasting is a process for casting metal in sand molds. The mold is made by packing the sand around a pattern. Molten bronze is then poured into a mold cavity formed out of sand. Each sand mold is used only once. The sand is then recycled for the next piece.

Features and Specifications of the Arched Style Multi Point Trim with Door Configuration #6:

• Material: Sandcast Bronze
• Overall Height: 11"
• Overall Width: 1-1/2"
• Distance Between Trim and Cylinder or Thumbturn (for Keyed, Passage, and Patio Functions): 3-5/8"
• Mounting Centers: 8-3/8"
• Plate Thickness: 3/8"
• Door Thickness: 1-5/8" - 2-3/4" please specify.
• Solid steel spindle.
• Emtek 1611 Dimensions (PDF)

Available Functions:

• Dummy Pair, Active (inside): Active lever inside with fixed inactive lever outside. For use as a pull or to match trim. Normally used on inactive French door. Set includes: Two (2) backplates, Two (2) levers with spindles and mounting screws.
• Dummy Pair, Inactive: Fixed inactive levers both sides of door. For use as a pull or to match trim. Normally used on inactive French door. Set includes: Two (2) backplates, Two (2) levers with spindles and mounting screws.
• Passage: Active levers both sides of door. Set includes: Two (2) backplates, Two (2) levers with spindles, and mounting screws.
• Patio: Active levers both sides of door. Thumb turn inside to lock door. Set includes: Two (2) backplates, Two (2) levers with spindles, One (1) interior thumb turn and mounting screws.
• Keyed Entry: Active levers both sides of door. Keyed lock cylinder outside with thumb turn inside to lock door. Set includes: Two (2) backplates, Two (2) levers with spindles, Two (2) cylinder collars, One (1) american profile cylinder with key outside & thumb turn inside and mounting screws.

Choose any of the different levers to complete your handleset.

Select Function - Important Ordering Guide   1614: Dummy Pair, Active (Fixed lever exterior/active lever interior)   1615: Dummy Pair, Inactive (Fixed levers both sides of door)   1612: Passage (Active levers both sides of door)   1613: Patio (Active levers both sides of door and interior thumbturn)   1611: Keyed Entry   Select Finish  FB: Flat Black Bronze Patina MB: Medium Bronze Patina TWB: Tumbled White Bronze Patina   Select Trim    AR: Aurora Lever   CR: Cimarron Lever   CD: Cody Lever   D: Durango Lever   LR: Lariat Lever   MT: Montrose Lever   TT: Teton Lever   Select Door Thickness  1-5/8" - 1-15/16" Door Thickness 2" - 2-3/4" Door Thickness   Handing - Important Ordering Guide Right Handing Left Handing   Keying - Important Ordering Guide Non-Keyed (Passage, Patio, and Dummy Functions) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
