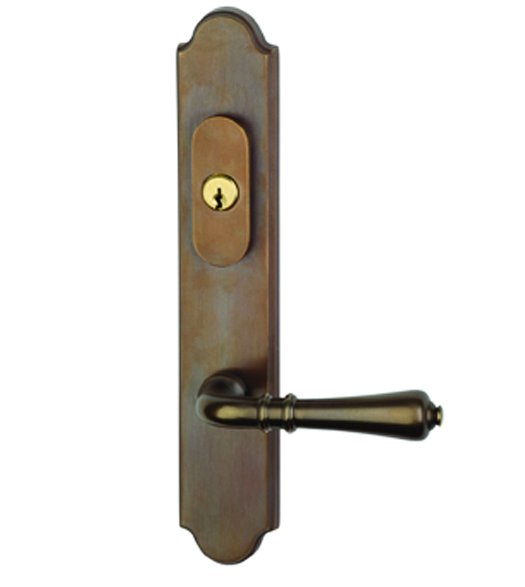

The classic styling of Omnia's 71000 series multipoint trim grants it an elegance that is only enhanced through the addition of one of the beautiful lever design options--all of which are just as sophisticated as the patio trim itself. These solid brass leversets are for use with American Cylinder Above Lever (american profile lock cylinder above the door lever) type multipoint mortise locksets commonly found on swinging patio doors. Available in 4 finishes.

The Thru-Bolts are fixed at 8-1/2" center to center and can not be modified. In some cases new thru-bolting holes must be drilled in your door.

This set does not come packaged with the multipoint lock mechanism (the vertical rods found in multipoint patio doors that secure the door to the frame) as those are typically preinstalled in multipoint doors and cannot be replaced. The multipoint trim set is intended to replace the original trim from G-U, Eagle, BiltBest, Hurd and others. The Lock to Lever distance is 3-5/8" (92 mm).

Also Available: Arched Patio Door Trim with American Cylinder Below the lever and with European Cylinder

Specifications: for Omnia 71000ACA Multipoint Trim Sets

• Material: Solid Brass Trim
• Lock to Lever Spacing: 3-5/8" (92 mm) Center to Center
• Thru-Bolt Hole Spacing: 8-1/2" (216 mm) Center to Center
• Plate Height: 9-5/8" (244 mm)
• Plate Width: 1-3/4" (44 mm)
• Plate Projection: 1/2" (12.5 mm)

When Selecting a Function:

• Dummy Pair, Inactive: Fixed inactive levers both sides of door. For use as a pull or to match trim. Normally used on inactive double door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, and mounting screws.
• Dummy Pair, Active (inside): Active lever inside with fixed inactive lever outside. For use as a pull or to match trim. Normally used on the inactive door of double doors.
  Set includes: Two (2) backplates, Two (2) levers with spindles, and mounting screws.
• Patio: Active levers both sides of door. Thumb turn inside to lock door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, One (1) interior thumb turn, and mounting screws.
• Keyed Entry: Active levers both sides of door. Keyed lock cylinder outside with thumb turn inside to lock door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, Two (2) cylinder collars, One (1) european profile cylinder with key outside & thumb turn inside, and mounting screws.

Choose any of the different solid brass interior levers to complete your handleset. The trim finish and the handleset finish will match.

Select Function - Important Ordering Guide PD: Dummy Cylinder, Inactive PDA: Dummy Cylinder, Active PAT: Patio Add  $27.75 A: Keyed Entry Add  $81.00   Select Finish  US3: Polished Brass US14: Polished Nickel Add  $42.00 US15: Satin Nickel Add  $42.00 US10B: Oil Rubbed Bronze Add  $42.00   Select Trim    71752: #752 Lever   71706: #706 Lever   71904: #904 Lever Add  $18.75   71944: #944 Lever Add  $18.75   71055: #55 Lever Add  $26.25   Select Door Thickness  1-3/4" Door Thickness 2" Door Thickness 2-1/4" Door Thickness   Select Handing - Important Ordering Guide Right Handed Left Handed   Keying - Important Ordering Guide Non-Keyed Item (Dummy Pair / Patio) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
