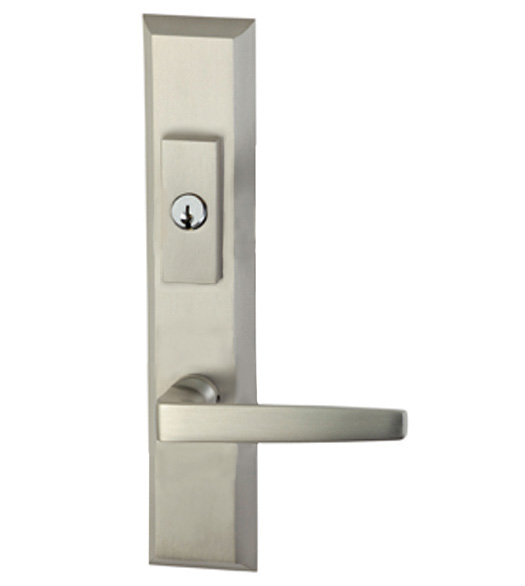

The timeless square shape of Omnia's 72000 series multipoint trim allows it to be easily transformed from a classic look to a modern one by selecting different levers; and with so many to choose from, you'll be sure to find just the right one to match your style. These solid brass leversets are for use with American Cylinder Above Lever (american profile lock cylinder above the door lever) type multipoint mortise locksets commonly found on swinging patio doors. Available in 4 finishes.

The Thru-Bolts are fixed at 8-1/2" center to center and can not be modified. In some cases new thru-bolting holes must be drilled in your door.

This set does not come packaged with the multipoint lock mechanism (the vertical rods found in multipoint patio doors that secure the door to the frame) as those are typically preinstalled in multipoint doors and cannot be replaced. The multipoint trim set is intended to replace the original trim from G-U, Eagle, BiltBest, Hurd and others. The Lock to Lever distance is 3-5/8" (92 mm).

Also Available: Arched Patio Door Trim with American Cylinder Below the lever and with European Cylinder

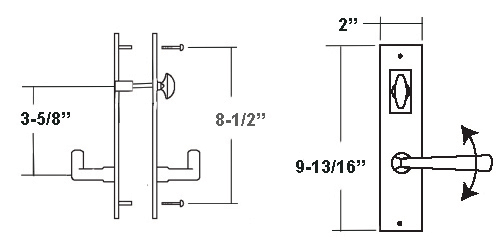

Specifications: for Omnia 72000ACA Multipoint Trim Sets

• Material: Solid Brass Trim
• Lock to Lever Spacing: 3-5/8" (92 mm) Center to Center
• Thru-Bolt Hole Spacing: 8-1/2" (216 mm) Center to Center
• Plate Height: 9-13/16" (250 mm)
• Plate Width: 2" (50 mm)
• Plate Projection: 1/2" (12.5 mm)

When Selecting a Functions:

• Dummy Pair, Inactive: Fixed inactive levers both sides of door. For use as a pull or to match trim. Normally used on inactive double door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, and mounting screws.
• Dummy Pair, Active (inside): Active lever inside with fixed inactive lever outside. For use as a pull or to match trim. Normally used on the inactive door of double doors.
  Set includes: Two (2) backplates, Two (2) levers with spindles, and mounting screws.
• Patio: Active levers both sides of door. Thumb turn inside to lock door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, One (1) interior thumb turn, and mounting screws.
• Keyed Entry: Active levers both sides of door. Keyed lock cylinder outside with thumb turn inside to lock door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, Two (2) cylinder collars, One (1) european profile cylinder with key outside & thumb turn inside, and mounting screws.

Choose any of the different solid brass interior levers to complete your handleset. The trim finish and the handleset finish will match.

Select Function - Important Ordering Guide PD: Dummy Cylinder, Inactive PDA: Dummy Cylinder, Active PAT: Patio Add  $24.75 A: Keyed Entry Add  $76.50   Select Finish  US26: Polished Chrome US26D: Satin Chrome US15: Satin Nickel Add  $30.00 US10B: Oil Rubbed Bronze Add  $30.00   Select Trim    72036: #36 Lever   72368: #368 Lever   72042: #42 Lever   72943: #943 Lever Add  $9.75   72227: #227 Lever Add  $45.00   72914: #914 Lever Add  $48.00   Select Door Thickness  1-3/4" Door Thickness 2" Door Thickness 2-1/4" Door Thickness   Select Handing - Important Ordering Guide Right Handed Left Handed   Keying - Important Ordering Guide Non-Keyed Item (Dummy Pair / Patio) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
