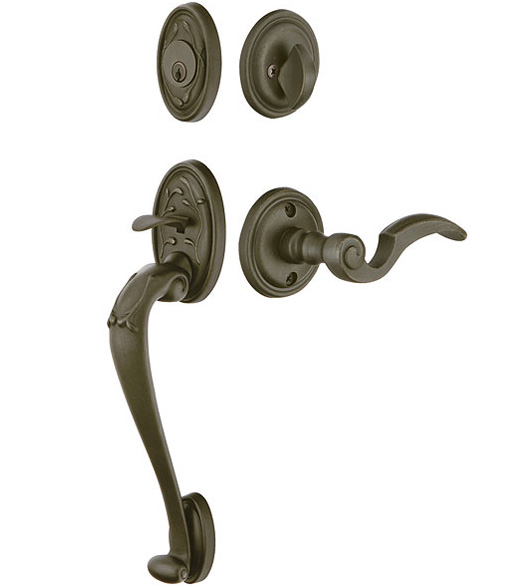

Emtek 471224, Tuscany Entry Door Handleset with Covered Deadbolt
The Cast Bronze Tuscany Two Piece Handleset features the floral designs made popular by traditional Tuscan decor. This Tuscany Entry Door Handleset with Covered Deadbolt is available as a dummy function and a single cylinder function. It will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 2-7/8 inches thick. Choose from either a flat black bronze finish or a medium bronze finish.
Features for the Lost Wax Cast Bronze Tuscany Tubular Handleset:
- Keyway: Schlage C
- UL 180 minute fire rating
- Hardened steel bolt.
- Will fit standard 2-1/8" door preparations.
Specifications for the Emtek Tuscany Entrance Handleset with Covered Deadbolt:
- Material: Cast Bronze
- Exterior Deadbolt Height: 3-5/8"
- Exterior Deadbolt Width: 2-1/2"
- Exterior Top Plate Height: 4-1/2"
- Exterior Top Plate Width: 3"
- Exterior Bottom Mount Height: 3"
- Exterior Bottom Mount Width: 1-13/16"
- Exterior Projection: 3-9/32"
- Exterior Grip Clearance: 2-3/8"
- Exterior Grip Thickness: 1-9/16"
- Interior Deadbolt Diameter: 2-1/2"
- Interior Trim Plate Diameter: 2-5/8"
- Door Thickness: 1-3/4" - 2-7/8" please specify
- Backset: either 2-3/8" or 2-3/4"
- Distance between Latch Bore to Bottom Mounting Hole: 9-7/16" c.c.
- Emtek 471224 Specifications (PDF)
- Emtek Tubular Entryset Template Specifications (PDF)
When Selecting a Function:
- Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
- Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
Sold Individually
|
