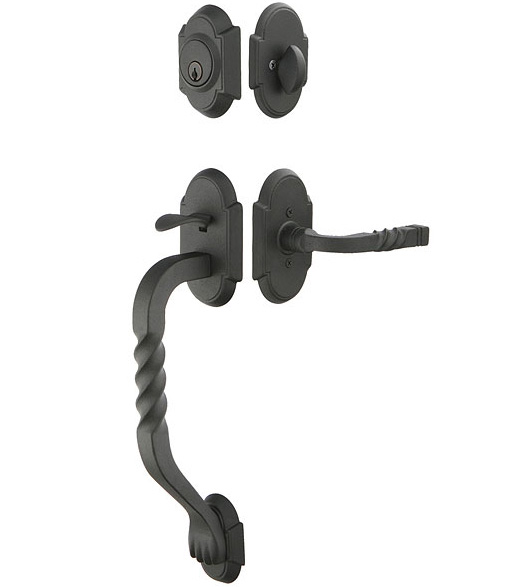

The Two Piece San Carlos Wrought Steel Handleset looks fit to grace the door of any old world castle and will be sure to bring that rustic glamor to your front door as well. This Two Piece Entry Door Handleset with San Carlos Grip is made out of wrought steel and is available in satin steel and flack black steel finishes. It will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-5/8 inches to 2-7/8 inches thick. Choose from your favorite historic interior trim knob or lever.

Features for the San Carlos Wrought Steel Tubular Handleset:

• Keyway: Schlage C
• UL 180 minute fire rating
• Hardened steel bolt.
• Will fit standard 2-1/8" door preparations.

Specifications for the Emtek Two Piece Entrance Handleset with San Carlos Grip:

• Material: Wrought Steel
• Exterior Deadbolt Height: 3-7/16"
• Exterior Deadbolt Width: 2-1/2"
• Exterior Top Plate Height: 4-3/8"
• Exterior Top Plate Width: 2-9/16"
• Exterior Bottom Plate Height:3"
• Exterior Bottom Plate Width: 2"
• Exterior Projection: 3-1/2"
• Exterior Grip Clearance: 2"
• Exterior Grip Thickness: 3/4"
• Interior Deadbolt Height: 3-5/8"
• Interior Deadbolt Width: 2-9/16"
• Interior Trim Plate Height: 4-3/8"
• Interior Trim Plate Width: 2-9/16"
• Door Thickness: 1-5/8" - 2-7/8"
• Distance between Latch Bore to Bottom Mounting Hole: 9-3/4" c.c.
• Emtek 461222 Specifications (PDF)
• Emtek Tubular Entryset Template Specifications (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 460222: Full Dummy Set 461222: Single Cylinder   Select Finish  FBS: Flat Black Steel SWS: Satin Steel   Select Door Thickness  1-5/8" - 1-15/16" Door Thickness 2" - 2-7/16" Door Thickness 2-1/2" - 2-7/8" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Interior Trim    L-RH: Lafayette Lever (Right Handing)   L-LH: Lafayette Lever (Left Handing)   N-RH: Normandy Lever (Right Handing)   N-LH: Normandy Lever (Left Handing)   SC-RH: San Carlos Lever (Right Handing)   SC-LH: San Carlos Lever (Left Handing)   J: Jamestown Knob   SV: Savannah Knob   MB: Madison Black Porcelain Knob   MI: Madison Ivory Porcelain Knob   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
