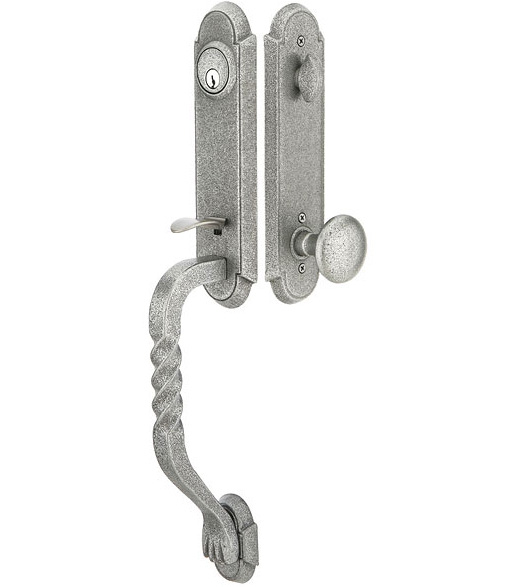

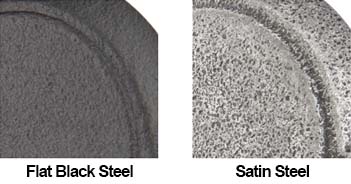

The Monolithic Handleset with San Carlos Grip has a rustic look that will make it a great addition to any traditional home. It recalls historic designs in a way that is in step with contemporary design aesthetics. The Monolithic Handleset with San Carlos Grip is available in satin steel and flat black steel finishes, both of which have a slightly textured surface. This Monolithic Entry Door Handleset with San Carlos Grip is available as a dummy function or a single cylinder function. This old world handleset will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick.

Features for the Wrought Steel Tubular Handleset:

• Keyway: Schlage C
• UL 180 minute fire rating
• Hardened steel bolt.
• Will fit standard 2-1/8" door preparations.

Specifications for the Emtek Monolithic Entrance Handleset with Twisted Grip:

• Material: Wrought Steel
• Exterior Plate Height: 19"
• Exterior Plate Width: 2-9/16"
• Exterior Projection: 3-1/2"
• Exterior Grip Clearance: 2"
• Exterior Grip Thickness: 3/4"
• Interior Plate Height: 9-5/8"
• Interior Plate Width: 2-9/16"
• Door Thickness: 1-3/4" - 3"
• Distance between Deadbolt and Lever Latch: 5-1/2" c.c.
• Distance between Latch Bore to Bottom Mounting Hole: 9-7/16" c.c.
• Emtek 461121 Specifications (PDF)
• Emtek Tubular Entryset Template Specifications (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.

Sold Individually

Select Function - Important Ordering Guide 460121: Full Dummy Set 461121: Single Cylinder   Select Finish  FBS: Flat Black Steel SWS: Satin Steel   Select Door Thickness  1-3/4" - 2-1/16" Door Thickness 2-1/4" - 2-7/16" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Interior Trim    L-RH: Lafayette Lever (Right Handing)   L-LH: Lafayette Lever (Left Handing)   N-RH: Normandy Lever (Right Handing)   N-LH: Normandy Lever (Left Handing)   SC-RH: San Carlos Lever (Right Handing)   SC-LH: San Carlos Lever (Left Handing)   J: Jamestown Knob   SV: Savannah Knob   MB: Madison Black Porcelain Knob   MI: Madison Ivory Porcelain Knob   Keying - Important Ordering Guide Non-Keyed (Full Dummy Function) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
