| Item No: |
EMT-4413 |
| List Price: |
$498.00 |
| Your Price: |
$398.99 |

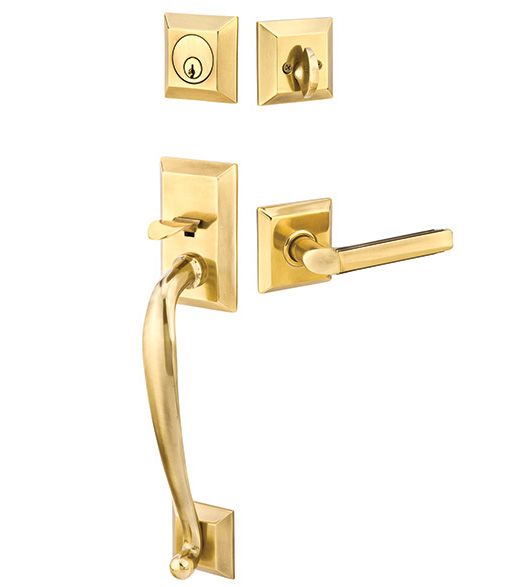

Emtek 4413, Two Piece Franklin Entry Door Lockset
The Franklin Handleset is a great addition to any classic home. The traditional style allows for this Two Piece Franklin Entry Door Lockset to blend seamlessly into almost any decor. It is available in dummy and single cylinder functions and comes as a complete set, packaged with everything you'll need to install it on a standard 2-1/8 inch prepped door. The Franklin Entrance Handleset will fit either 2-3/8 inch or 2-3/4 inch backsets and can accommodate doors from 1-3/4 inches to 3 inches thick.
Features for the Franklin Tubular Handleset:
- Keyway: Schlage C
- UL 180 minute fire rating
- Hardened steel bolt.
- Will fit standard 2-1/8" door preparations.
Specifications for the Emtek Franklin Entrance Handleset:
- Material: Brass
- Exterior Deadbolt Height: 2-1/2" square
- Exterior Handle Top Plate Height: 4-1/2"
- Exterior Handle Top Plate Width: 2-3/4"
- Exterior Handle Bottom Plate Height: 2-1/4" square
- Exterior Projection: 2-11/16"
- Exterior Grip Clearance: 1-9/16"
- Exterior Grip Thickness: 1-5/16"
- Interior Deadbolt Height: 2-1/2" square
- Interior Trim Rose Height: 2-1/2" square
- Door Thickness: 1-3/4" - 3" please specify
- Backset: either 2-3/8" or 2-3/4"
- Distance between Latch Bore to Bottom Mounting Hole: 9-7/16" c.c.
- Emtek 4413 Specifications (PDF)
- Emtek Tubular Entryset Template Specifications (PDF)
When Selecting a Function:
- Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
- Single Cylinder: From the exterior, a thumb piece operates the handleset latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a knob/lever operates the latch.
Sold Individually
|
