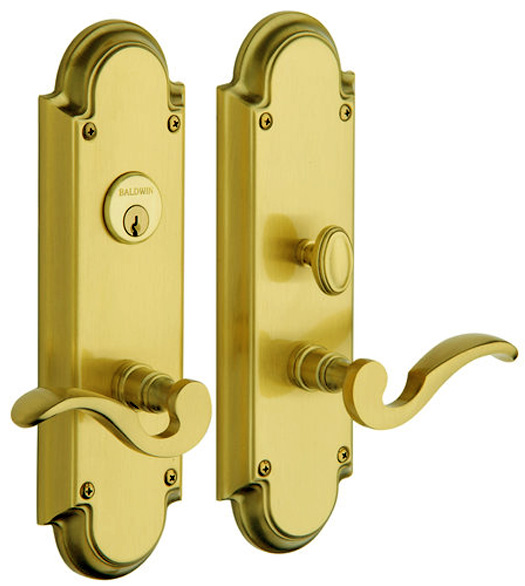

Baldwin's Hamilton Entry Set is made out of solid brass with a limited lifetime warranty on the mechanics, materials, and on the PVD Polished Brass Finish. The arched shape of this 6791 Entrance Set is enhanced by the 5152 Drop Tail Lever for a classic look that will look great in any traditional home. It will fit 1-3/8" or 1-3/4" door thicknesses and with backsets of 2-1/2" or 2-3/4". Available as a single cylinder, double cylinder, or a dummy set function.

Mortise locks have been, and still are, the established norm for Europe and much of the rest of the world. In the early 1960’s Baldwin brought residential mortise locks to America. They ‘founded’ the residential mortise industry and continue to be the leader – so much so that their competitors have bought Baldwin locks for their own products.

Features of the Traditional 6791 Hamilton Door Entrance Set:

• Accessibility Code (ADA) A117.1
• Certified by Underwriters Laboratories (UL) for use on fire doors up to three-hour rating.
• Made of solid forged brass.
• Heavy-duty mortise lock body.
• Forged brass mechanical.
• One inch throw deadbolt with two hardened inserts.
• Reinforced steel security strike with three inch screws.
• Comes packaged with two keys.
• Lifetime Limited Warranty on workmanship, materials, operation, and finish.

Specifications of the Ornate Estate Collection Hamilton Entryset:

• Finish: Lifetime PVD Polished Brass
• Interior Trim: 5152 Lever
• Length: 10.875"
• Width: 3.375"
• Thickness: .687"
• Lever Length: 4"
• Overall Projection: 2.774"
• Door Thickness: 1-3/4" or 1-3/8"
• Backset: 2-1/2" or 2-3/4"
• Hamilton Entry Set Specification Sheet (PDF)
• Mortise Box Specification Sheet (PDF)

When Selecting a Function:

• Full Dummy Set: Trim for non-working doors. It does not latch and does not lock. Usually used as matching trim for the non-working side of double doors.
• Single Cylinder: From the exterior, a lever operates the entrance set latch and a key operates the deadbolt. From the inside, a thumbturn unlocks the deadbolt and a lever operates the latch.
• Double Cylinder: From the exterior, a lever operates entrance set latch; while from the interior, it is operated by a lever. The deadbolt is operated by a key from both the inside and the outside.

Select Function - Important Ordering Guide Full Dummy Set Single Cylinder Add  $645.60 Double Cylinder Add  $723.20   Select Door Thickness  1-3/4" Door Thickness 1-3/8" Door Thickness   Select Backset - Important Ordering Guide 2-3/4" Backset 2-1/2" Backset   Select Door Handing & Door Swing - Important Ordering Guide Right Hand Door, Out-Swing Right Hand Door, In-Swing Left Hand Door, Out-Swing Left Hand Door, In-Swing   Keying - Important Ordering Guide Non Keyed (dummy set) I only ordered one Keyed Different Keyed Alike Add  $5.50
