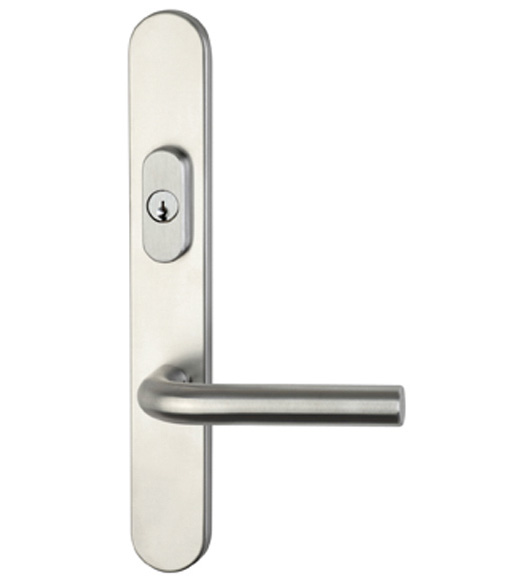

With its modern design, this Omnia patio leverset is the perfect addition to any contemporary home. The brushed stainless steel finish brings out the sleek look of the multipoint trim. These contemporary stainless steel leversets from Omnia are for use with American Cylinder Above (american profile lock cylinder above the door lever) type multipoint mortise locksets commonly found on swinging patio doors.

The Thru-Bolts are fixed at 9-1/2" center to center and can not be modified. In some cases new thru-bolting holes must be drilled in your door.

This set does not come packaged with the multipoint lock mechanism (the vertical rods found in multipoint patio doors that secure the door to the frame) as those are typically preinstalled in multipoint doors and cannot be replaced. The multipoint trim set is intended to replace the original trim from G-U, Eagle, BiltBest, Hurd and others. The Lock to Lever distance is 3-5/8" (92 mm).

Also Available: Arched Patio Door Trim with European Cylinder and with American Cylinder Below the lever

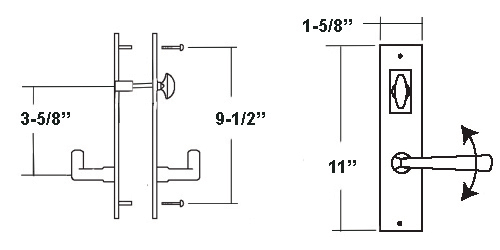

Specifications: for Omnia 73000ACA Multipoint Trim Sets

• Material: Solid Stainless Steel Trim
• Finish: Satin Stainless Steel
• Lock to Lever Spacing: 3-5/8" (92 mm) Center to Center
• Thru-Bolt Hole Spacing: 9-1/2" (242 mm) Center to Center
• Plate Height: 11" (280 mm)
• Plate Width: 1-5/8" (40 mm)
• Plate Projection: 7/16" (10 mm)

When Selection a Function:

• Dummy Pair, Inactive: Fixed inactive levers both sides of door. For use as a pull or to match trim. Normally used on inactive double door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, and mounting screws.
• Dummy Pair, Active (inside): Active lever inside with fixed inactive lever outside. For use as a pull or to match trim. Normally used on the inactive door of double doors.
  Set includes: Two (2) backplates, Two (2) levers with spindles, and mounting screws.
• Patio: Active levers both sides of door. Thumb turn inside to lock door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, One (1) interior thumb turn, and mounting screws.
• Keyed Entry: Active levers both sides of door. Keyed lock cylinder outside with thumb turn inside to lock door.
  Set includes: Two (2) backplates, Two (2) levers with spindles, Two (2) cylinder collars, One (1) european profile cylinder with key outside & thumb turn inside, and mounting screws.

Choose any of the different stainless steel interior levers to complete your handleset.

Select Function - Important Ordering Guide PD: Dummy Pair, Inactive PDA: Dummy Pair, Active PAT: Patio Add  $42.00 A: Keyed Entry Add  $130.50   Select Trim    73011: #11 Lever   73012: #12 Lever   73033: #33 Lever Add  $51.75   73023: #23 Lever Add  $55.50   73025: #25 Lever Add  $69.75   73043: #43 Lever Add  $69.75   Select Door Thickness  1-3/4" Door Thickness 2" Door Thickness 2-1/4" Door Thickness   Select Handing - Important Ordering Guide Right Handed Left Handed   Keying - Important Ordering Guide Non-Keyed Item (Dummy Pair / Patio) I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
