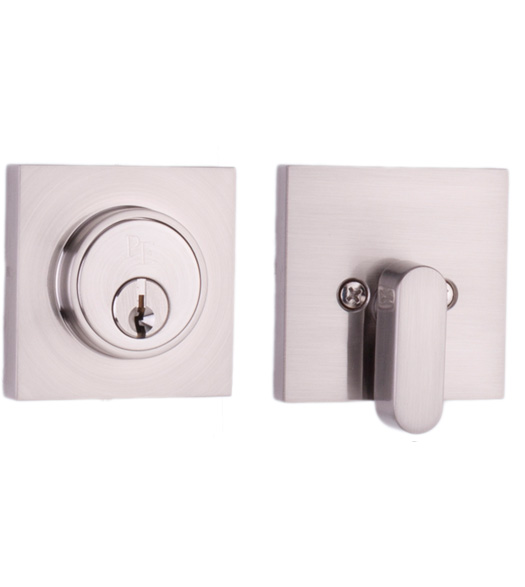

Weslock Transitional Single Cylinder Deadbolt with Square Rose is a grade 3 deadbolt suitable for residential use. It is made to be easy to instal with an adjustable latch to fit 2-3/8 inch or 2-3/4 inch backsets. It will fit standard doors with a 2-1/8 inch Cross Bore, 1 inch Edge Bore that are 1-3/8 inches to 1-3/4 inches thick.

Single Cylinder: The deadbolt is thrown and retracted by a key from the exterior and by a thumb turn from the interior.

Features of the Weslock Grade 3 Single Cylinder Deadbolt:

• ANSI Grade 3 Certified
• 1" throw deadbolt.
• Anti-Pick Shield
• ADA recommended, extra large interior thumbturn
• Limited 25 mechanical warranty.
• Limited 5 year finish warranty.

Specifications of the Traditionale Collection Grade 3 Single Cylinder Deadbolt:

• Height: 2-1/2" square
• Exterior Projection: 3/4"
• Interior Projection: 1-1/4"
• Backset: adjustable 2-3/8" or 2-3/4"
• Door Thickness: adjustable from 1-3/8" to 1-3/4".
• Material: Solid Zinc and All Metal Construction
• Keyway: Weslock 5-Pin Keyway

Sold Individually

Select Finish    N: Satin Nickel   2: Matte Black Add  $3.36   1: Oil Rubbed Broze Add  $3.36   Select Keying - Important Ordering Guide I Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
