Modern Dylan Knob with Marcel Rose, Yale YMRC-DYL


Item No:  YAL-YMRC-DYL
List Price:  $45.15
Your Price:  $31.99

Yale YMRC-DYL, Modern Dylan Knobset with Square Marcel Rose

Designed to fit on many standard pre-drilled doors, the Modern Dylan Knob with Marcel Rose comes packaged as a complete set. This modern knob has an adjustable latch that will fit 2-3/8 inch backsets or 2-3/4 inch backsets. The Modern Dylan Knobset with Square Marcel Rose fits standard door thicknesses of 1-3/8 inches to 1-3/4 inches. Choose from the modern finish color options in dummy, passage, privacy, and keyed function.

Features of the Yale Expressions Dylan Knob with Modern Marcel Rosette:

  • Fits standard door cut outs (2-1/8" pre-drilled doors).
  • Solid brass knob and trim rose.
  • Sold as complete set.
  • Easy to install.

Specifications of the Modern Dylan Knob with Marcel Square Rose:

  • Material: Brass
  • Knob Diameter: 1-7/8"
  • Knob Projection: 2-1/2"
  • Rose Length: 2-1/2" square
  • Door Thickness: adjustable for 1-3/8" - 1-3/4"
  • Backset: adjustable 2-3/8" or 2-3/4"
  • Handing: non-handed
  • Keyed Entry has a Schlage C keyway.
  • Yale YMRC-DYL Specifications (PDF)

Available Functions:

  • Double Dummy: No door latch. Door knobs on both sides of the door. Knob is surface mounted (rosette screws to the door's face). Package Includes: 2 knobs, 2 roses, and mounting screws.
  • Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 knobs, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
  • Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Turnbutton on interior knob engages privacy lock on both knobs; emergency release hole is on exterior knob. Package Includes: 2 knobs, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
  • Keyed: Guarded latchbolt operated from outside by key; inside by knob. Turnbutton on the interior locks outside knob. Outside knob unlocks by key. Complete set - 2 knobs, 2 roses, 2 keys, door latch and strike plate.

Sold Individually


Select Function - Important Ordering Guide

Select Finish
  US15: Satin Nickel
  US26: Polished Chrome
  US4: Satin Brass
  US19: Matte Black

Select Keying - Important Ordering Guide


Quantity

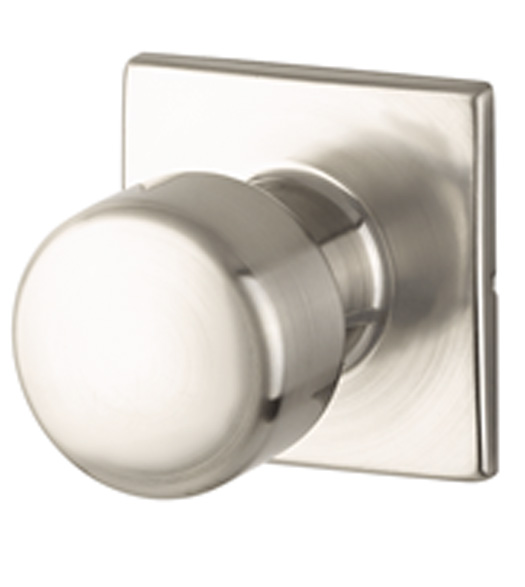

  Marcel Rosette with Dylan Knob

  Modern Dylan Knob with Marcel Rose, Yale YMRC-DYL
