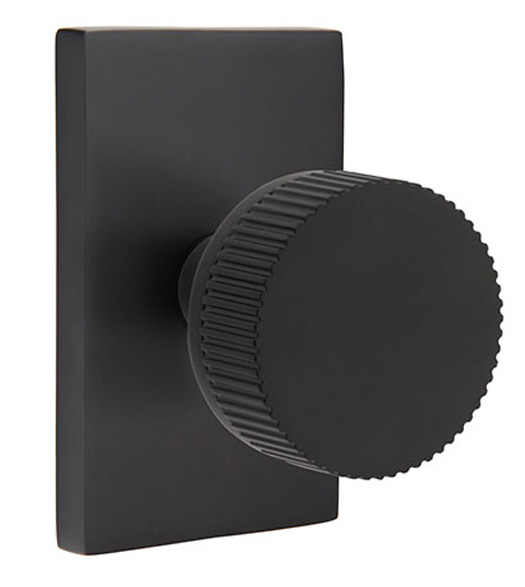

The Straight Knurled Conical Knob with Rectangular Rose features a modern style ridged knob paired with a matching rectangle rosette. This modern knobset is available in all standard residential functions: dummy, passage, and privacy. Choose from your favorite contemporary finish color option. The Conical Ridged Knob and Rectangular Rose is easy to install and will fit most pre-drilled doors.

Features of the Emtek Select Rectangular Rose with Straight Knurled Conical Knob:

• Fits standard door cut outs (2-1/8" pre-drilled doors).
• Knob is surface mounted (rosette screws to the door's face).
• Solid brass knob and trim rose.
• Sold as complete set.
• Easy to install.

Specifications of the Straight Knurled Conical Knobset with Rectangular Rose:

• Material: Brass
• Knob Diameter: 2-1/4"
• Knob Projection: 2-1/4"
• Rose Height: 4"
• Rose Width: 2-1/2"
• Door Thickness: 1-1/4 - 3"
• Backset: 2-3/8" or 2-3/4"
• Emtek Select Conical Knob Dimensions Diagram (PDF)

Available Functions:

• Double Dummy: No door latch. Door knobs on both sides of the door. Package Includes: 2 knobs, 2 roses, and mounting screws.
• Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 knobs, 2 roses, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
• Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior rose. Turning inside knob will release privacy push button and retract the door latch. Package Includes: 2 knobs, 2 roses, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.

This mix-match style knob is totally customizable. If you need a different finish combination or a different rose style, Contact Us



Select Function - Important Ordering Guide 5052CCSKK: Double Dummy 5112CCSKK: Passage (Hall or Closet) 5212CCSKK: Privacy (Bedroom or Bathroom)   Select Finish  US10B: Oil Rubbed Bronze US15: Satin Nickel US19: Matte Black US26: Polished Chrome US14: Polished Nickel US4: Satin Brass US3NL: Unlacquered Brass Add  $16.00   Select Door Thickness  1-1/4" - 2" Door Thickness 2" - 2-1/2" Door Thickness 2-1/2" - 3" Door Thickness   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
