The PDQ 6400 Series offers a heavy duty grade 1 solution for compliance with life safety and fire code requirements. They come with touch bar components that are constructed of heavy gauge wrought steel or stainless steel as well as metal chassis covers and end caps.

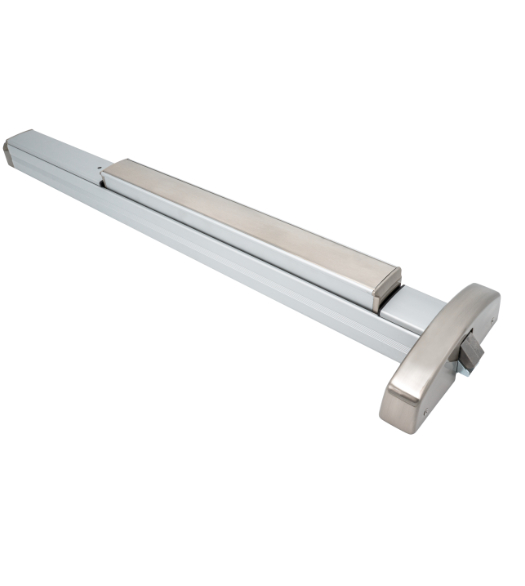

Features and Certifications for PDQ 6400R Rim Exit Device

• Quiet operation - large heavy-duty spring cushion quiets both the compression/extension of the push bar
• Internal compression spring ensures long lasting push bar return
• Simple field door prep and installation
• True 2-3/4” backset (with 5/8” frame stop and 1/8” door gap)
• Wood and machine screws included with each device
• Warranty: 10 year limited manufacturer's warranty
• Listed for UL 305 “Panic”, listed for UL 10C “Fire Exit Hardware” up to 3 hours.
• Certified to ANSI/BHMA A156.3 Grade 1
• FL #40297 +60/-65 psf 4080 16ga Single
• FL #40297 +50/-50 psf 4080 18ga Single
• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
• Meets requirements of the Buy American Act as a COTS product manufactured in the United States

Specifications for PDQ 6400R Rim Exit Device

• Chassis: Cadmium plated steel
• Rail: Heavy gauge steel or stainless steel
• Touch Pad: Heavy gauge steel or stainless steel
• Latch Bolt: Stainless steel dead locking with 3/4" throw rim
• Head Width: 1-9/16"
• Head Height: 8-3/16"
• Projection: 3-1/8" extended, 2-1/2" depressed
• Hand: Device is non-handed
• Dogging: Hex key dogging standard / No dogging on fire labeled devices
• Stile Width: 2-1/8" minimum
• Door Thickness: 1-3/4"- 2"
• Door Width: Standard for 2'6"- 3'0" door maximum
• Warranty: 10 year limited manufacturer's warranty
• Installation Instructions: Non Fire Rated (PDF) - Fire Rated (PDF)

Available Exterior Trim: for PDQ 64200R Rim Exit Device

• Rim Lock Cylinder: Night Latch Function (ANSI F03) - Includes rim cylinder or IC Rim Housing, collar, and required mounting hardware. Unlatch (Open) door from exterior with Key. Key removable only when locked.
• Escutcheon Plate Passage Lever: Passage Function (ANSI F14) - Outside entrance by lever for doors that don't need locking. Narrow Escutcheon Plate (1-13/16" wide x 9" high) with ADA compliant Lever.
• Escutcheon Plate Keyed Storeroom Lever: Storeroom Function (ANSI F09) - Outside entrance by lever when latch bolt is retracted by Key. (Lever only opens door when the key is turned). Key removable only when locked. Narrow Escutcheon Plate (1-13/16" wide x 9" high) with ADA compliant Lever.
• Escutcheon Plate Keyed Classroom Lever: Classroom Function (ANSI F08) - Outside lever locked and unlocked by Key. Narrow Escutcheon Plate (1-13/16" wide x 9" high) with ADA compliant Lever.
• Dummy Handle Pull: Dummy Function - Used as a door pull only. Does NOT cover pre-drilled 2-1/8" bore hole.
• Thumb Latch Keyed Storeroom Handles: Storeroom Function (ANSI F06) - Outside entrance by thumb press when latch bolt is released by Key. (Thumb press only opens door when the key is turned). Key removable only when locked.
• Thumb Latch Keyed Classroom Handles: Classroom Function (ANSI F05) - Outside entrance by thumb press when latch bolt is unlocked by Key. (Thumb press locked or unlocked by key).

Available in Satin Stainless Steel, Dark Bronze, or Polished Brass Finish with or with the optional fire rating. Note: Fire rated panic devices can not be dogged (IE: The door always latches closed).
