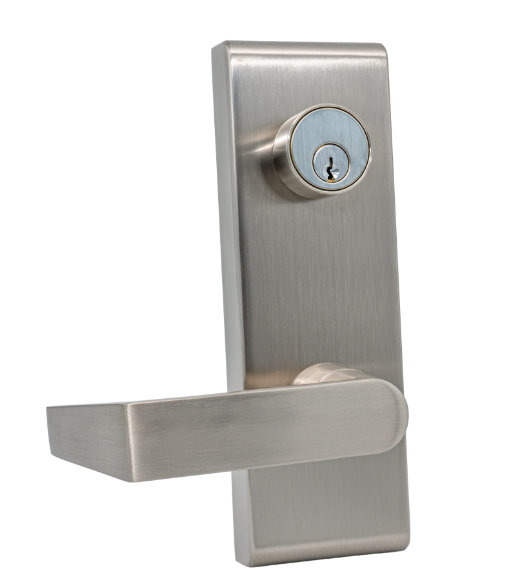

This is a wide Escutcheon Plate Classroom Function Lever (Outside lever locked and unlocked by Key) is suitable for all Wide and Medium Stile Doors (aluminum framed, hollow metal, or wood). For use on door's exterior with Panic Device Hardware. Heavy duty commercial set covers standard 2-1/8" bore hole door prep.

For use with PDQ 6300 Series Rim Exit Device and 6300 Series Surface Vertical Rod Exit Device.

Also available: Passage Function Lever for 6300 Series Panic Device and Storeroom Function Lever for 6300 Series Panic Device

Packaged with mounting hardware, instructions, and 2 keys.

Features for PDQ 6-W-08-PHL Keyed Classroom Function Lever

• Classroom Function (ANSI F08) - Outside lever locked and unlocked by Key.
• Escutcheon Plate Width: 3"
• Escutcheon Plate Height: 9"
• Total Projection: 3-1/8"
• Lever Length: 5-1/4"
• Lock Cylinder: Standard Schlage C Keyway
• Supplied with 2 keys
• Non-Handed
• ADA Compliant
• PDQ 6-W Installation Template (PDF)
• Installation Instructions (PDF)

Select Finish  6-W-08-PHL-630: Satin Stainless Steel 6-W-08-PHL-605: Polished Brass Add  $17.22 6-W-08-PHL-606: Satin Brass Add  $17.22 6-W-08-PHL-613E: Dark Bronze Add  $17.22   Keying - Important Ordering Guide Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
Quantity
