Bommer

83 Inch Standard Full Mortise Continuous Geared Hinge, Bommer FM83HD

SKU: BOM-FM83HD
$308.95 $514.92Save $205.97/ unit
Out of Stock — Notify me
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

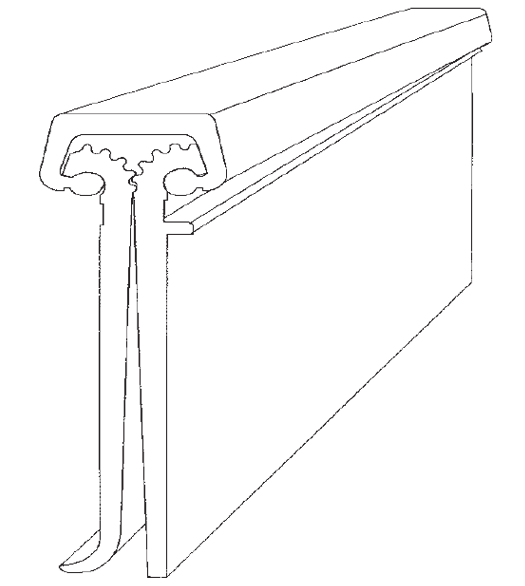

The Bommer FM83HD is an 83" Standard Full Mortise Continuous Geared Hinge designed for heavy-duty applications in new construction and renovation projects.

This full mortise hinge utilizes a continuous geared aluminum mechanism, requiring no pin and providing concealed movement when installed.

Bommer Full Mortise gear hinge dimensions Bommer hinges Made in the USA
Other
Hinge Length 83"
Hinge Material Aluminum
Number of Bearings 27
Maximum Door Weight 540 lbs. (Heavy Duty)
Maximum Door Height 6'-10" (83")
Maximum Door Thickness 1-3/4"
Hinge Type Full Mortise Continuous Gear Hinge
