83 Inch Short Leaf Flush Mortise Continuous Geared Hinge, Bommer FM83SLF-HD

SKU: BOM-FM83SLF-HD
$308.95 $514.92Save $205.97/ unit
Out of Stock — Notify me
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

The Bommer FM83SLF-HD is an 83" Short Leaf Flush Mortise Continuous Geared Hinge, designed for heavy-duty applications in new construction and renovations.

This full mortise hinge system allows the frame leaf to fasten securely to the door frame jamb, while the door leaf fastens to the door edge, achieving a flush fit when closed.

These hinges ship complete with mounting hardware, utilizing #12-24 x 7/16" Type C FHUC screws for installation.

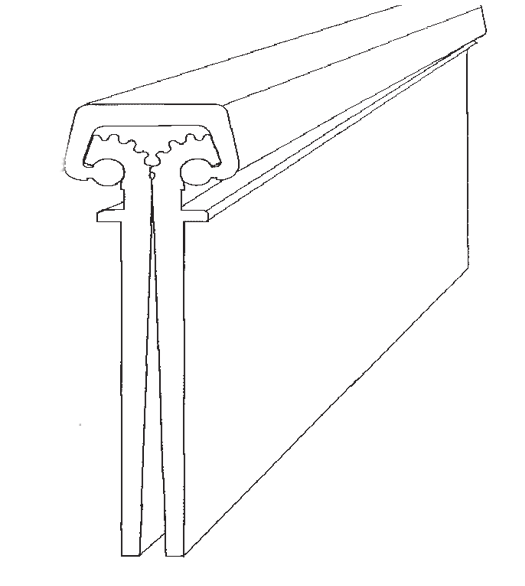

Bommer Short Leaf Flush Full Mortise gear hinge dimensions Bommer hinges Made in the USA
Other
Hinge Length 83"
Hinge Material Aluminum
Number of Bearings 27
Maximum Door Weight 540 lbs. (Heavy Duty)
Maximum Door Height 6'-10" (83")
Hinge Type Short Leaf Flush Mortise Continuous Gear Hinge
