Bommer

83 Inch Short Leaf Inset Mortise Continuous Geared Hinge, Bommer FM83SLI-HD

SKU: BOM-FM83SLI-HD
$308.95 $514.92Save $205.97/ unit
Out of Stock — Notify me
Contractor or designer? Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

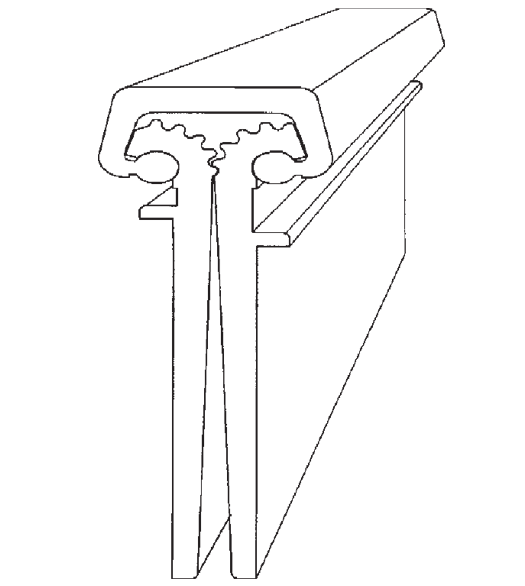

The Bommer FM83SLI-HD is an 83" Short Leaf Inset Mortise Continuous Geared Hinge designed for full mortise applications in new construction and renovation projects.

This heavy-duty hinge utilizes a continuous geared aluminum mechanism, requiring no pin, and accommodates a 3/32" door inset when installed.

Bommer Short Leaf Inset Full Mortise gear hinge dimensions Bommer hinges Made in the USA
Other
Hinge Length 83"
Hinge Material Aluminum
Number of Bearings 27
Maximum Door Weight 540 lbs. (Heavy Duty)
Maximum Door Height 6'-10" (83")
Door Inset 3/32"
Hinge Type Short Leaf Inset Mortise Continuous Gear Hinge

Questions about this product? Call 954-776-5340 or send us a message below.
