Bommer
120 Inch Short Leaf Inset Mortise Continuous Geared Hinge, Bommer FM120SLI-HD
$573.30
$955.50Save $382.20/ unit
Out of Stock — Notify me
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida
The Bommer 120" Short Leaf Inset Mortise Continuous Geared Hinge is engineered for heavy-duty door applications, suitable for both new construction and renovation projects.
This hinge utilizes a Full Mortise installation where the frame leaf fastens to the door jamb and the door leaf fastens to the door edge. The door must be inset 3/32" from the frame.
Constructed from aluminum, this continuous geared hinge operates without a pin and is supplied complete with all necessary mounting hardware.
Other
Hinge Length
120"
Hinge Material
Aluminum
Number of Bearings
39
Maximum Door Weight
780 lbs. (Heavy Duty)
Maximum Door Height
10' (120")
Door Inset
3/32"
Hinge Type

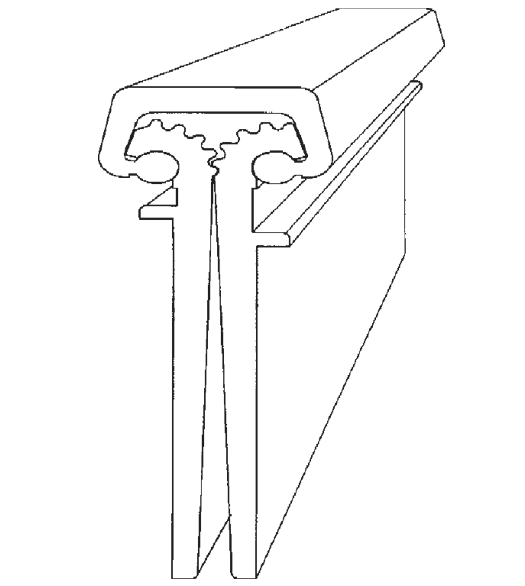

Short Leaf Inset Mortise Continuous Gear Hinge
