Bommer
120 Inch Standard Full Mortise Continuous Geared Hinge, Bommer FM120HD
$573.30
$955.50Save $382.20/ unit
Out of Stock — Notify me
Contractor or designer?
Volume pricing + dedicated account rep available
Free Shipping Orders $250+
30-Day Returns
Secure Checkout
Ships from Florida

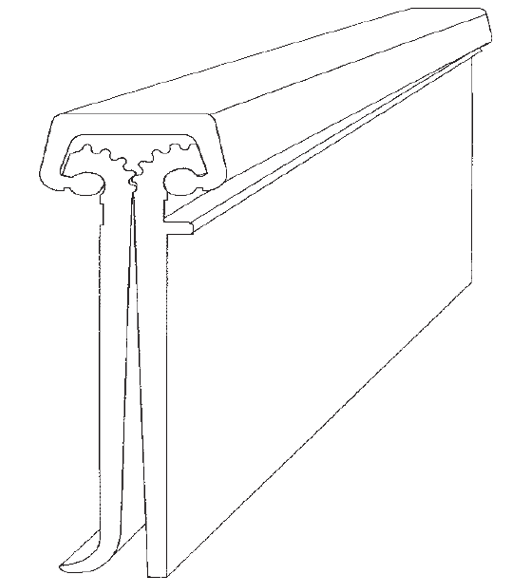

The Bommer FM120HD is a 120" Standard Full Mortise Continuous Geared Hinge, designed for high-capacity door applications in new construction and renovations.
This continuous gear hinge is fully mortised, allowing the frame leaf to secure to the door frame jamb and the door leaf to attach to the door edge. The unit ships complete with mounting hardware, including #12-24 x 7/16" Type C FHUC screws.
Available in Clear Anodized or Anodized Dark Bronze finishes.
Other
Hinge Length
120"
Hinge Material
Aluminum
Number of Bearings
39
Maximum Door Weight
780 lbs. (Heavy Duty)
Maximum Door Height
10' (120")
Maximum Door Thickness
1-3/4"
Hinge Type
Full Mortise Continuous Gear Hinge
Questions about this product? Call 954-776-5340 or send us a message below.
