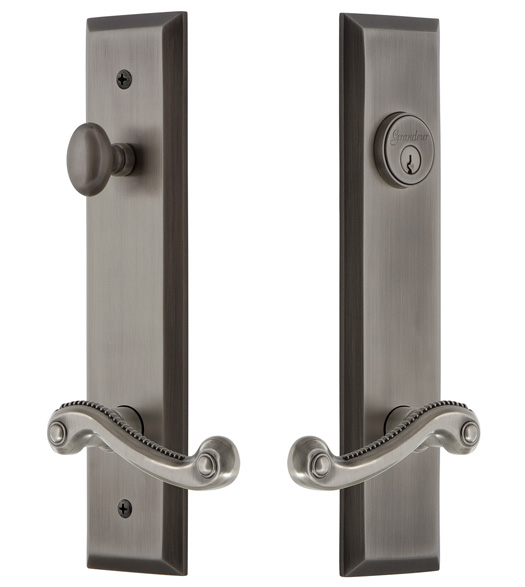

The Keyed Entry Newport Lever with Fifth Avenue Plate is a single cylinder entryset so the deadbolt is key operated from the exterior and by a turnknob on the interior while the levers operate the latch underneath the deadbolt from the exterior and the interior. It will fit most standard pre-drilled doors with 2-3/8 inch or 2-3/4 inch backsets that are 1-3/4 inches to 2-1/4 inches thick. The Newport Keyed Entry Lever with Fifth Avenue Tall Plate has rope detailing on the lever for a classic maritime look that is great for high-end coastal homes.

Single Cylinder Entry Set: The deadbolt is thrown and retracted by key from the exterior and by turn unit on the interior. A lever operates the door latch from both interior and the exterior.

Want your entire house to have matching hardware? Also Available Newport Lever with Fifth Avenue Tall Plate for Interior Doors in Privacy, Passage, and Dummy Functions.

Features of the Single Cylinder Grandeur Newport Lever with Fifth Avenue Rose:

• Keyway: Schlage "C"
• Made out of solid forged brass.
• One inch throw deadbolt.
• Easy to install.
• Lifetime Mechanical Warranty
• 10 Year Finish Warranty

Specifications of the Keyed Entry Set Newport Leverset with Tall Fifth Avenue Plate:

• Lever Length: 4-3/4"
• Lever Projection: 2-5/8"
• Plate Height: 11"
• Plate Width: 2-5/8"
• Plate Projection: .39"
• Mounting Centers: 8-1/4"
• Door Thickness: Adjustable 1-3/4" to 2-1/4"
• Backset: 2-3/8" or 2-3/4"
• Grandeur FAVNEW19ENTR Dimensions (PDF)

Sold Individually
