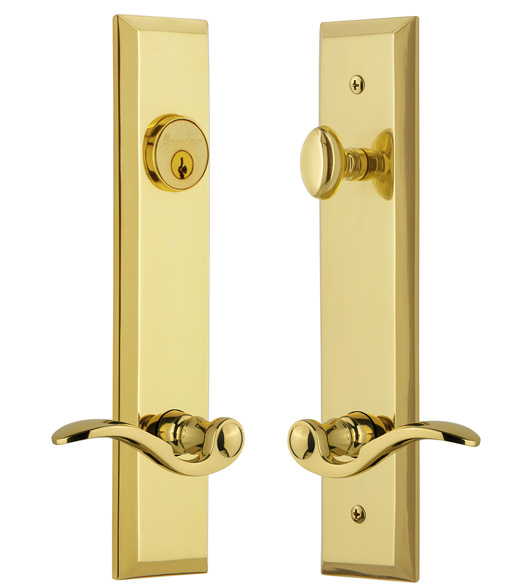

The Single Cylinder Keyed Entry Bellagio Lever with Fifth Avenue Plate has a timeless beauty. The curved beauty of the Bellagio Lever paired with the rectangular Fifth Avenue Tall Plate is a classic. This Bellagio Keyed Entry Lever with Fifth Avenue Tall Plate will fit most standard pre-drilled doors. It comes packaged as a complete set for one door (both sides). It will fit doors with 2-3/8 inch or 2-3/4 inch backsets that are 1-3/4 inches to 2-1/4 inches thick. A single cylinder lock, the deadbolt is key operated from the exterior and by a turnknob on the interior while the levers operate the latch underneath the deadbolt from the exterior and the interior.

Single Cylinder Entry Set: The deadbolt is thrown and retracted by key from the exterior and by turn unit on the interior. A lever operates the door latch from both interior and the exterior.

Want your entire house to have matching hardware? Also Available Bellagio Lever with Fifth Avenue Tall Plate for Interior Doors in Privacy, Passage, and Dummy Functions.

Features of the Single Cylinder Grandeur Bellagio Lever with Fifth Avenue Rose:

• Keyway: Schlage "C"
• Made out of solid forged brass.
• One inch throw deadbolt.
• Easy to install.
• Lifetime Mechanical Warranty
• 10 Year Finish Warranty

Specifications of the Keyed Entry Set Bellagio Leverset with Tall Fifth Avenue Plate:

• Lever Length: 4.72"
• Lever Projection: 1.90"
• Plate Height: 11"
• Plate Width: 2-5/8"
• Plate Projection: .39"
• Mounting Centers: 8-1/4"
• Door Thickness: Adjustable 1-3/4" to 2-1/4"
• Backset: 2-3/8" or 2-3/4"
• Grandeur FAVBEL19ENT Dimensions (PDF)

Sold Individually



Select Finish  LB: Lifetime Polished Brass VB: Vintage Brass TB: Timeless Bronze PN: Polished Nickel SN: Satin Nickel AP: Antique Pewter   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset   Select Handing - Important Ordering Guide Right Hand Left Hand   Keying - Important Ordering Guide I Only ordered One Lock Keyed Different Keyed Alike Add  $5.50
