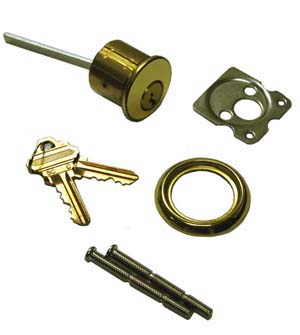

Commercial door rim cylinder lock. Rim cylinders are normally used on the doors exterior to unlatch Rim Panic Devices. For for use with PDQ-4200V-B605, PDQ-4200R-B605 and PDQ-4200R-A605. Available in Polished Brass, Brushed Chrome or Dark Bronze finish.

Can be used on other door hardware items that use a rim cylinder lock. Normal bore hole in door is 1-1/4" (32 mm).

Specifications: for PDQ Rim Cylinder

• Cylinder Body Diameter: 1-9/64" (1.140)
• Function: Keyed Rim Cylinder
• Standard 6-pin Schlage "C" Keyway
• Flat "cut to size" horizontal tail piece
• For up to 2-3/4" thick doors
• Packed with 1-7/8" diameter trim ring
• Includes mounting plate and two (2) #12 x 2-1/4" machine screws

Select Finish  I01705-6016: Polished Brass I01707-6016: Brushed Chrome I01706-6016: Dark Bronze   Keying - Important Ordering Guide Only Ordered One Lock Keyed Different Keyed Alike Add  $5.50
