| Item No: |
EMT-7059 |
| List Price: |
$300.00 |
| Your Price: |
$240.99 |

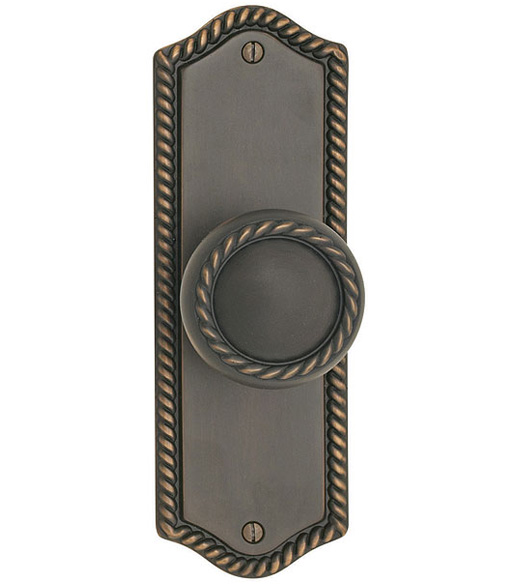

Emtek 7059, Rope Door Set
The 7-1/2 Inch Rope Sideplate is a great addition to any traditional home. This classic interior door set is available in passage, privacy, and dummy functions. Choose from a huge selection of time-honored knobs and levers including matching rope knob or rope lever. This Rope Sideplate will fit standard 2-1/8 inch door preparations with door thicknesses ranging from 1-1/4 inches to 3 inches thick and with backsets of 2-3/8 inches or 2-3/4 inches.
Features of the 7-1/2 Inch Rope Door Sideplate:
- Fits standard door cut outs (2-1/8" pre-drilled doors).
- Lever is surface mounted (rosette screws to the door's face).
- Solid brass trim and sideplate.
- Sold as complete set.
- Easy to install.
Specifications for the Emtek Rope 7-1/2 Inch Sideplate:
- Material: Brass
- Overall Height: 7-1/2"
- Overall Width: 2-1/2"
- Plate Thickness: 3/8"
- Doors Thickness: 1-1/4" - 3"
- Backset: 2-3/8" or 2-3/4"
- Emtek 7059 Specifications (PDF)
Available Functions
- Double Dummy: No door latch. Door knobs / levers on both sides of the door. Package Includes: 2 knobs / levers, 2 sideplates, and mounting screws.
- Passage (Hall or Closet): For doors that don't need locking. Latch operates from either side of door. Package Includes: 2 knobs / levers, 2 sideplates, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
- Privacy (Bedroom or Bathroom): For doors that could need privacy locking. Latch operates from either side. Push button on interior rose engages privacy; emergency release hole is on exterior sideplate. Turning inside knob / lever will release privacy push button and retract the door latch. Package Includes: 2 knobs / levers, 2 sideplates, privacy button, door latch, strike plate, dust box, faceplate, spindle, and mounting screws.
|
