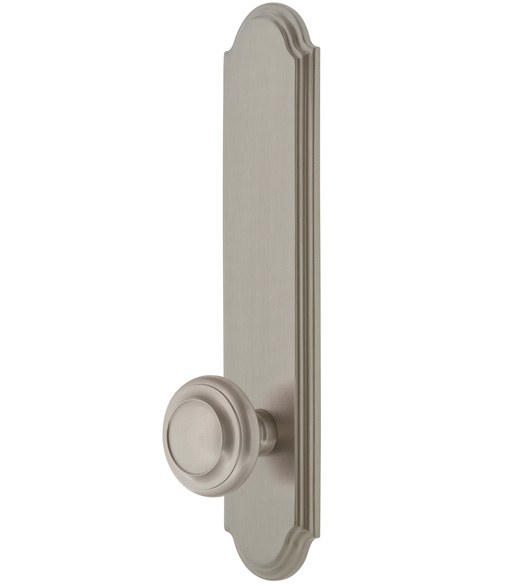

The Circulaire Knob with Arc Plate has a traditional design that makes it well-suited for use on historic homes or even new builds were a classic look is desired. The Circulaire Knob with Arched Plate is available in a wide array of finishes and will fit 1-3/8 inch to 2 inch thick doors with 2-3/8 inch or 2-3/4 inch backsets. Choose from dummy, passage or privacy functions.

Also Available Circulaire Knob with Arc Tall Plate Single Cylinder Entryset and Circulaire Knobset with Arc Short Plate

Features of the Grandeur Circulaire Half-Round Knob with Arched Rose:

• Easy to install.
• Lifetime Mechanical Warranty
• 10 Year Finish Warranty

Specifications of the Traditional Circulaire Knob with Arched Plate:

• Material: Brass
• Knob Diameter: 2-3/8"
• Knob Projection: 2-1/2"
• Plate Height: 11"
• Plate Width: 2-1/2"
• Plate Projection: .39"
• Mounting Centers: 8-1/4"
• Door Thickness: Adjustable 1-3/8" to 2"
• Backset: 2-3/8" or 2-3/4"
• Arc Tall Plate Dimensions (PDF)

When Selecting A Function:

• Single Dummy: A surfaced mounted, non-working, smooth knob. Non-locking and non-latching trim for one side of door. This inactive pull is usually used to match trim.
• Double Dummy: A surfaced mounted, non-working, smooth knob. Non-locking and non-latching trim for both sides of door. These inactive pulls are usually used to match trim.
• Passage (hall or closet): Latches but does not lock. The latch is activated by turning the either of the two knobs.
• Privacy (bedroom or bathroom): Latches and can be locked. Can be locked from the inside with a push-button.

Sold Individually



Select Function - Important Ordering Guide Single Dummy Double Dummy Add  $213.60 Passage (hall or closet) Add  $213.60 Privacy (bedroom or bathroom) Add  $213.60   Select Finish  SN: Satin Nickel AP: Antique Pewter LB: Lifetime Polished Brass PB: Polished Brass PN: Polished Nickel TB: Timeless Bronze VB: Vintage Brass   Select Backset - Important Ordering Guide 2-3/8" Backset 2-3/4" Backset
Quantity
